Description

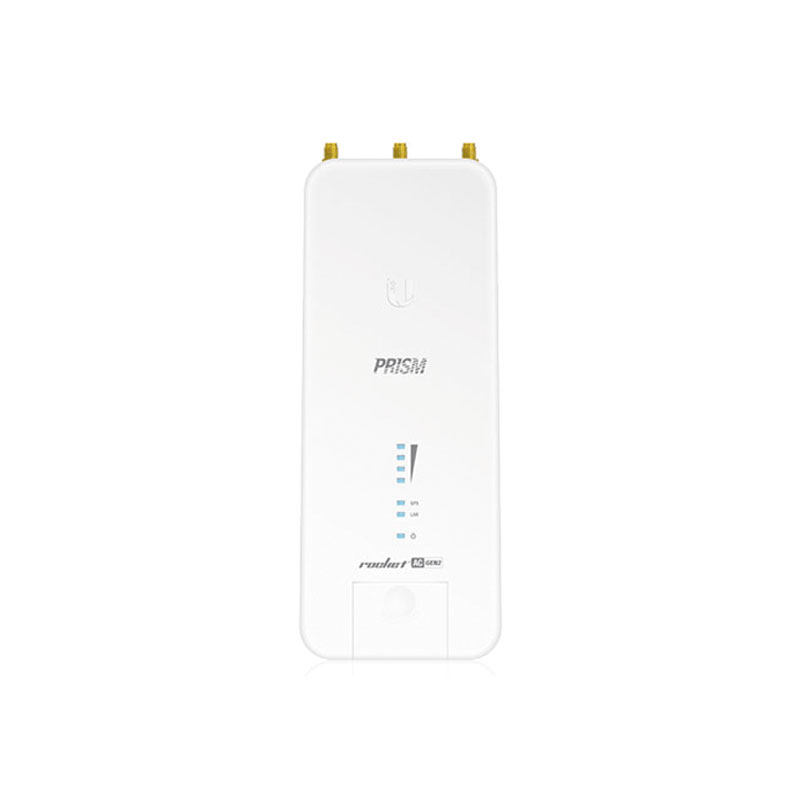

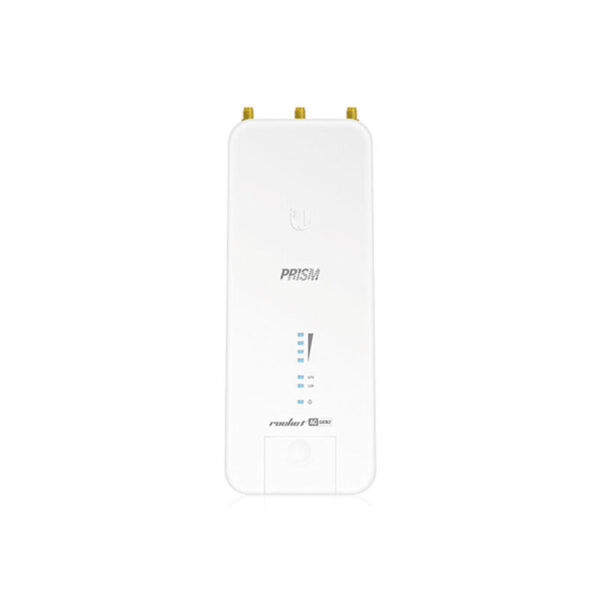

Ubiquiti’s Gen 2 Rocket Prism 5AC is a 5GHz radio that takes advantage of their airMAX AC Time Division Multiple Access (TDMA) protocol as well as the improved Signal-to-Noise Ratio and co-location facilitation of their airPrism technology. Covering the full 5GHz frequency, the RP-5AC-Gen2 is capable of achieving up to 500+Mbps throughput (using a channel width of 80MHz).
The Rocket 5ac PRISM Gen2 is capable of quick and easy integration with Ubiquiti’s airMax antennas as each antenna comes equipped with a built-in Rocket mount, meaning that the devices can be integrated without needing special tools. Three devices can also be mounted onto Ubiquiti’s airPrism 5 GHz High Density 90° Sector Antenna in order to achieve coverage over three isolated 30° beamwidths.
A separate WiFi radio is integrated into the device, allowing for quick and easy setup via Ubiquiti’s UMobile App.
Product Features:
- 5 GHz Wide Band Operating Frequency
- Custom Ubiquiti airMAX ac Processor
- Dedicated Wi-Fi Radio for Management
Technical Specifications
Ubiquiti Rocket 5AC PRISM Gen 2 5GHz Radio | |
---|---|
Dimensions | 88 x 40 x 230 mm |
Weight | 400 g |
Networking Interface | 1x 10/100/1000 Ethernet Port |
RF Connectors | 2x RP-SMA (Waterproof ) |
1x GPS* (Waterproof) | |
LEDs | Signal Strength, GPS*, Power, LAN |
Enclosure | Die-Cast Aluminum with White Powder Coating |
Max. Power Consumption | 9.5W |
Power Supply | 24V, 1A Gigabit PoE Adapter (Included) |
Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Processor Specs | Atheros MIPS 74Kc |
Memory | 128 MB DDR2 SDRAM |
Supported Voltage Range | 18-26VDC |
Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz |
PtMP: 10/20/30/40 MHz | |
ESD/EMP Protection | ± 24 kV Contact / Air for Ethernet |
Operating Temperature | -40 to 80° C |
Operating Humidity | 5 to 95% Noncondensing |
RoHS Compliance | Yes |
Shock and Vibration | ETSI300-019-1.4 |
Modes | Access Point, Station |
Services | Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing |
Utilities | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
Distance Adjustment | Dynamic Ack and Ackless Mode |
Power Adjustment | Software Adjustable UI or CLI |
Security | WPA2 AES Only |
QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
Statistical Reporting | Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate |
Other | Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS*, TX Filter |
Ubiquiti Specific Features | 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode |
Operating Frequency | 2412 - 2472 MHz |
5150 - 5875 MHz | |
Certifications | CE, FCC, IC |
