Description

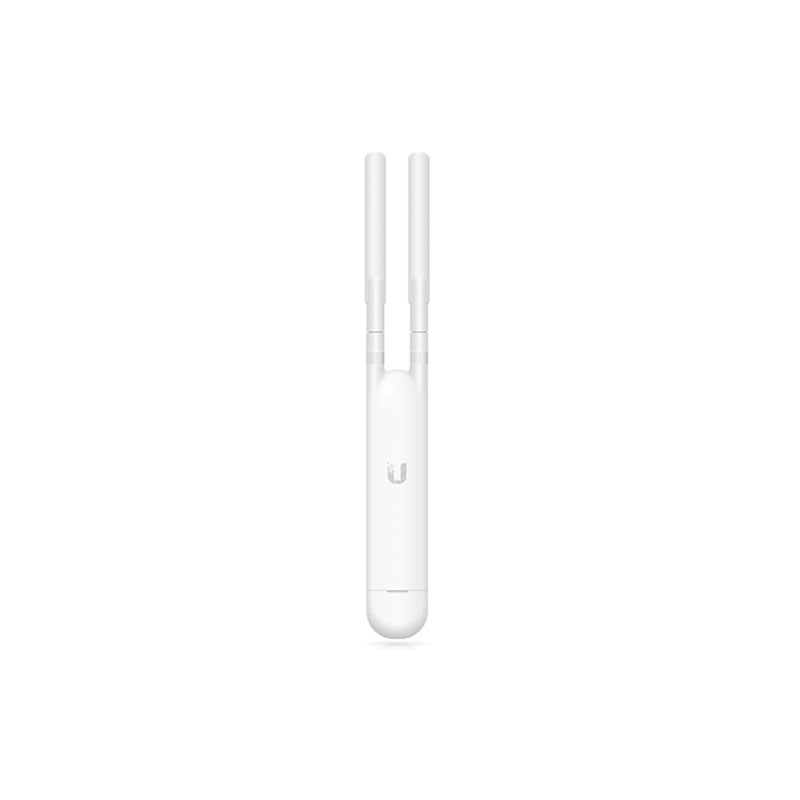

The Ubiquiti UniFi UAP AC Mesh Access Point Features Wi-Fi 802.11AC with Plug & Play technology and offers simultaneous 2×2 MIMO technology. Designed for discreet indoor or outdoor deployments, the UniFi AC Mesh Access Point is a compact device that can be mounted onto a wall or pole, or fast-mounted onto a Ubiquiti high-gain antenna.
The UniFi AC Mesh Access Point is compatible with 802.3af PoE Alternative A and 24v passive PoE. A gigabit PoE adapter is included with this device.
Two adjustable external omni antennas are included with the UniFi AC Mesh Access Point. There is also the option to expand the coverage range and customise pattern shaping by using the included fast-mount adapter to install the AP on an optional connectorised antenna.
As with all Ubiquiti UniFi products, the UniFi AC Mesh Access Point can be managed via the UniFi Cloud Controller.
Product Features:
- Plug & Play technology
- Up to 867Mbps at 5GHz
- 802.3af PoE Compatibility
Technical Specifications
| Ubiquiti UniFi UAP AC Mesh Access Point | |
|---|---|
| Dimensions | 353 x 46 x 34.4 mm |
| Weight | 152 g (with antennas) |
| Networking Interface | 1x 10/100/1000 Ethernet Port |
| Buttons | Reset |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return); |
| 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) | |
| (Supported Voltage Range: 44 to 57VDC) | |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Power Save | Supported |
| Maximum Power Consumption | 8.5W |
| Maximum TX Power (2.4GHz / 5GHz) | 20dBm / 20dBm |
| Antennas | 2x External Dual-Band Omni |
| Gain (2.4GHz / 5GHz) | 3dBi / 4dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to Four per Radio |
| Mounting | Wall/Pole/Fast-Mount (Kits Included) |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 250+ |
| Supported Data Rates: | |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
