Description

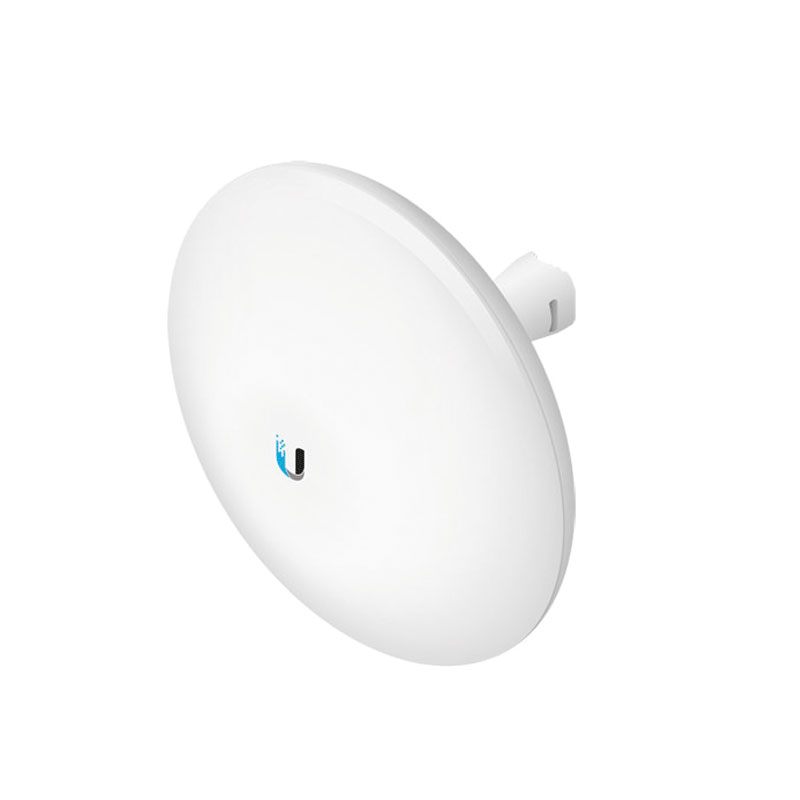

Ubiquiti’s NanoBeam 5AC-16 boasts a combined radio and antenna, allowing for a more compact and efficient CPE that retains versatility and high performance whilst remaining cost-effective.
Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. The form factor of the Ubiquiti NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
Product Features:
- Uniform Beamwidth Maximizes Noise Immunity
- Innovative Mechanical Design
- High-Speed Processor for Superior Performance
Technical Specifications
| Ubiquiti NanoBeam AC 16dBi | |
|---|---|
| Dimensions | 140 x 140 x 54 mm |
| Weight | 0.320 kg |
| Processor Specs | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 8 MB Flash |
| Networking Interface | 1x 10/100/1000 Ethernet Port |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. Power Consumption | 6W |
| Gain | 16 dBi |
| Operating Frequency | 5150 - 5875 MHz |
| Channel Sizes | PTP: 10/20/30/40/50/60/80 MHz |
| PtMP: 10/20/30/40 MHz | |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included), Wall-Mount |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Wind Loading | 21.4 N @ 200 km/h |
| Wind Survivability | 200km/h |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
