UniFi UAP AC In-Wall

Please login or register to see price, or request a quote

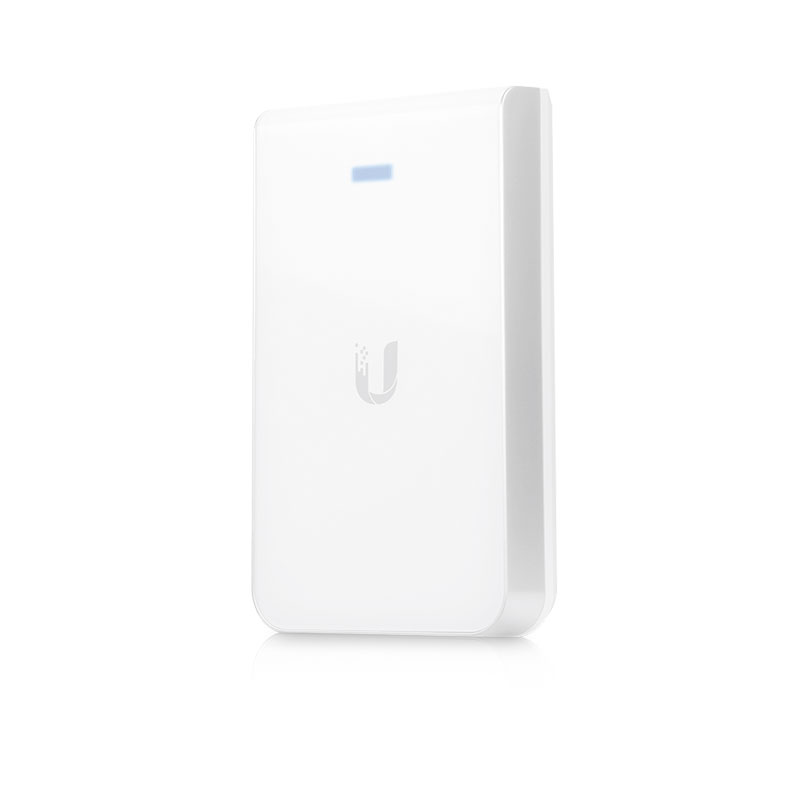

Ubiquiti’s UniFi AC In-Wall AP transforms an Ethernet wall connection into a dual-band 802.11AC Wi-Fi Access Point. The device features two additional Gigabit Ethernet ports, one of which delivers PoE to power and connect an 802.3af device to the network. Both ports can be found on the base of the device.

Product Features:

  • Data Rate Up to 867Mbps
  • Simultaneous Dual-Band
  • 2×2 MIMO
Clear
Compare
SKU: UAP-AC-IW Categories: ,

Description

Ubiquiti's UniFi AC In-Wall AP transforms an Ethernet wall connection into a dual-band 802.11AC Wi-Fi Access Point. The device features two additional Gigabit Ethernet ports, one of which delivers PoE to power and connect an 802.3af device to the network. Both ports can be found on the base of the device.

The UniFi AC In-Wall AP provides simultaneous, dual-band, 2x2 MIMO technology and offers data rates of up to 867Mbps in the 5GHz frequency. It is powered by 48V passive PoE and also supports 802.3at and provides PoE output at 48V passthrough. The PoE Input port is located on the back of the device.

The back plate offers a variety of mounting holes specifically designed to provide easy installation worldwide.

Product Features:

  • Data Rate Up to 867Mbps
  • Simultaneous Dual-Band
  • 2x2 MIMO

Model Comparison Chart





Technical Specifications:

 Ubiquiti UniFi UAP AC In-Wall
Dimensions139.7 x 86.7 x 25.75 mm
Weight200g
Networking Interface3x 10/100/1000 Ethernet Ports
ButtonsReset
Power MethodPassive Power over Ethernet (48V),
803.2at Supported
(Supported Voltage Range: 44 to 57VDC)
Power SupplyUniFi Switch (PoE)
Power SaveSupported
PoE Out48V Pass-Through (Pins 1, 2+; 3, 6-)
Max Power Consumption7W
Max. TX Power20dBm
Antenna1x Dual-Band Antenna, Single Polarity
Gain2.4GHz: 1dBi
5GHz: 2dBi
Wi-Fi Standards802.11 a/b/g/n/ac
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSIDUp to Four per Radio
Mounting1-Gang Electrical Wall Box (Not Included)
Operating Temperature-10 to 50° C
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC
VLAN802.1Q
Advanced QoSPer-User Rate Limiting
Guest Traffic IsolationSupported
WMMVoice, Video, Best Effort, and Background
Concurrent Clients250+
Supported Data Rates:
802.11ac6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
