Description

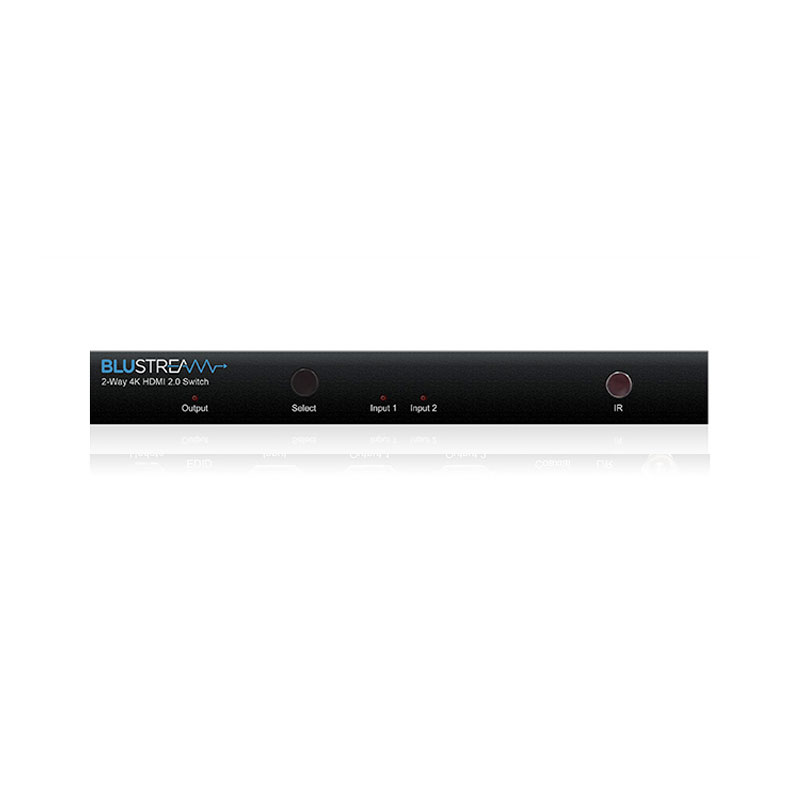

BLUSTREAM 2-Way 4K HDMI Switch, HDMI 2.0, HDCP 2.2
Our SW21AB-V2 is a 2-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
Key Features
- Features 2x HDMI inputs which can be switched to a single HDMI output
- Auto-switching (HPD sensing) capabilities can be enabled / disabled
- Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
- HDCP2.2 compliant
- Supports 3D signal display
- Supports CEC bypass (Consumer Electronics Control)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently
- Control via front panel and IR (remote control included)
- Advanced EDID management
Specifications
- Video Input Connectors: 2x HDMI Type A
- Video Output Connectors: 1x HDMI Type A
- Audio Output Connectors: 1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)
- IR Input Ports: 1x 3.5mm stereo Jack
- Product Dimensions (WxDxH): 196 x 104 x 32mm (with connections)
- Product Dimensions (WxDxH): 196 x 94 x 23mm (without connections)
- Product Weight: 0.45kg (excluding accessories)
- Carton / Box Dimensions (WxDxH): 295 x 155 x 80mm
- Shipping Weight: 0.8kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V / 2A DC
Box Contents
1x SW21AB-V2
1x SW21-REMOTE
1x 5V / 2A DC power supply
1x User manual
