Description
BLUSTREAM Custom Pro 8×8 HDMI Matrix – Supports HDR, IP Control, 2-Way IR
The BLUSTREAM Custom Pro 8×8 HDMI Matrix delivers 4K 18Gbps HDR performance for the custom installation market. The PRO88HDMI-V2 is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix featuring Bi-directional IR and a web browser interface module for control and configuration of the matrix.
Key Features
- Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
- Supports 18 Gbps 4K UHD video including HDR, HDR10+ and Dolby Vision
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Control via front panel, IR, RS-232 & TCP/IP
- 3rd Party drivers available for all major home control brands
- Advanced EDID management
- HDCP 2.2 compliant
Specifications

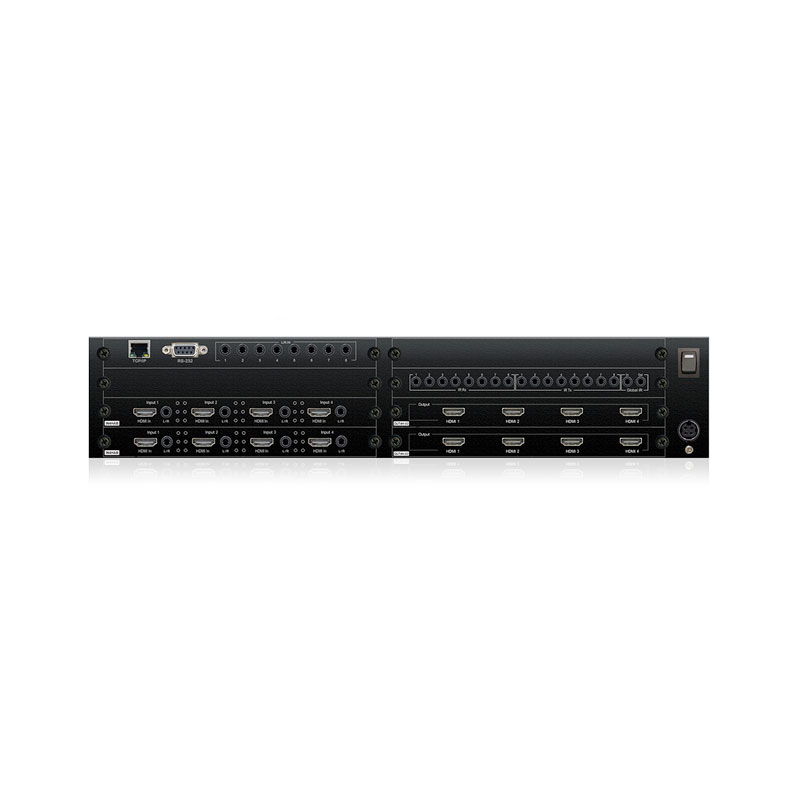

- Video Input Connectors: 8 x HDMI Type A, 19-pin female
- Video Output Connectors: 8 x HDMI Type A, 19-pin, female
- Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
- TCP/IP Control: RJ45, female
- Ethernet/Network: RJ45, female
- RS-232 serial port: DB-9, female
- Rack-Mountable: 2U rack height, rack ears included
- Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
- Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
- Shipping Weight: 5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 12V/6A DC
