Description
The BLUSTREAM ACM200 UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch.
The ACM200 Advanced Control Module allows for advanced third party control of the Multicast system using TCP/IP, RS-232 and IR.
The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB/KVM, Audio and Video. Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
Key Features
- Web interface module for configuration and control of the Blustream Multicast system
- Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
- Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
- Auto system configuration
- 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP / IP control of Multicast system - RS-232 integration for control of Multicast system
- IR integration for control of Multicast system
- PoE (Power over Ethernet) to power Blustream product from a PoE switch
- Local 12V power supply (optional) should Ethernet switch not support PoE (PSU not supplied)
- Support for iOS and Android App control (coming soon)
- 3rd Party drivers available for all major home control brands

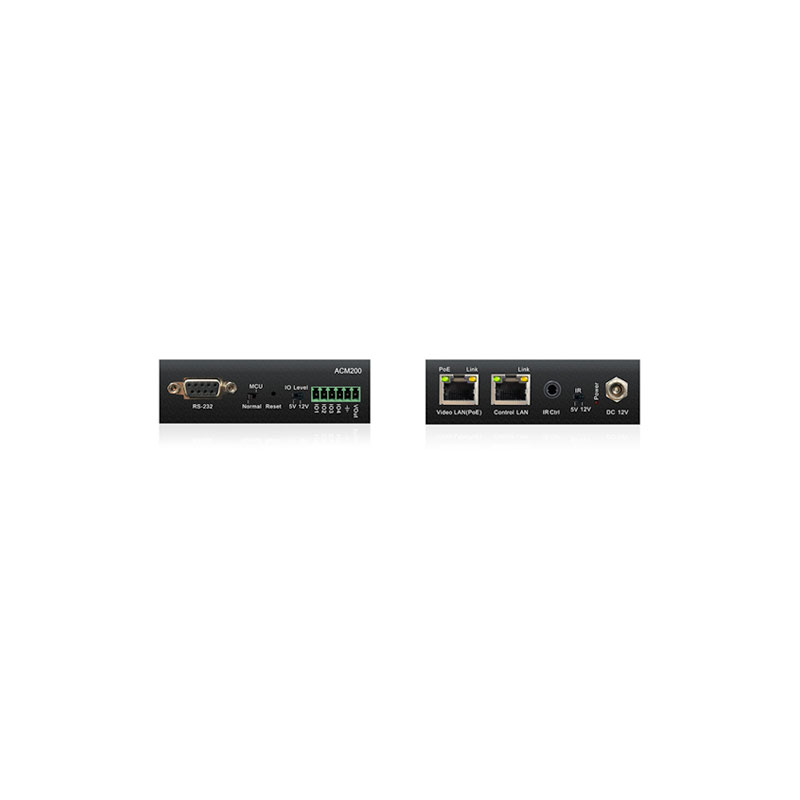

Specifications
- Ethernet port: 2x LAN RJ45 connector (1x PoE support)
- RS-232 serial port: 1x DB-9 female
- RS-232 & I/O port: 1x 6-Pin Phoenix connector
- IR Input ports: 1x 3.5mm stereo jack
- Dimensions (W x D x H ): 96mm x 110mm x 26mm
- Shipping Weight: 0.6kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
