Description
BLUSTREAM HDBaseT Extender Set – 70m (4K up to 40m), RS-232 Pass through, Bi-directional IR, Bi-directional PoH (PoE)
Our HEX70ED-KIT 4K HDBaseT™ extender set offers market leading features and outstanding value. The product supports HDMI, RS-232, Bi-directional IR and Bi-directional PoH (PoE) up to lengths of 70m.
Key Features
- Extends HDMI up to distances of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports CEC bypass (Consumer Electronics Control)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports bi-directional RS-232 pass through
- Supports bi-directional IR from all input and output locations
- Supplied with Blustream IR receiver and emitter
- Advanced EDID management
- HDCP1.4 compliant
Specifications
- Video Input
– HEX70ED-TX: 1x HDMI Type A, 19-pin, female
– HEX70ED-RX: 1x HDBaseT™ RJ45 - Video Output
– HEX70ED-TX: 1x HDBaseT™ RJ45
– HEX70ED-RX: 1x HDMI Type A, 19-pin, female - IR Input Ports: 2x 3.5mm stereo jack
- IR Output Ports: 2x 3.5mm mono jack
- RS-232 Control: 2x DB9, female
- Power Supply: 12V / 2A DC, screw type connector
- Power Consumption: 9.5W
- Extender Dimensions (WxDxH): 110 x 115 x 26mm (with connections)
- Extender Dimensions (WxDxH): 110 x 110 x 26mm (without connections)
- Ind. Extender Weight: 0.35kg (excluding accessories)
- Carton / Box Dimensions (WxDxH): 295 x 155 x 80mm
- Shipping Weight: 1.1kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Mounting kit included
Box Contents

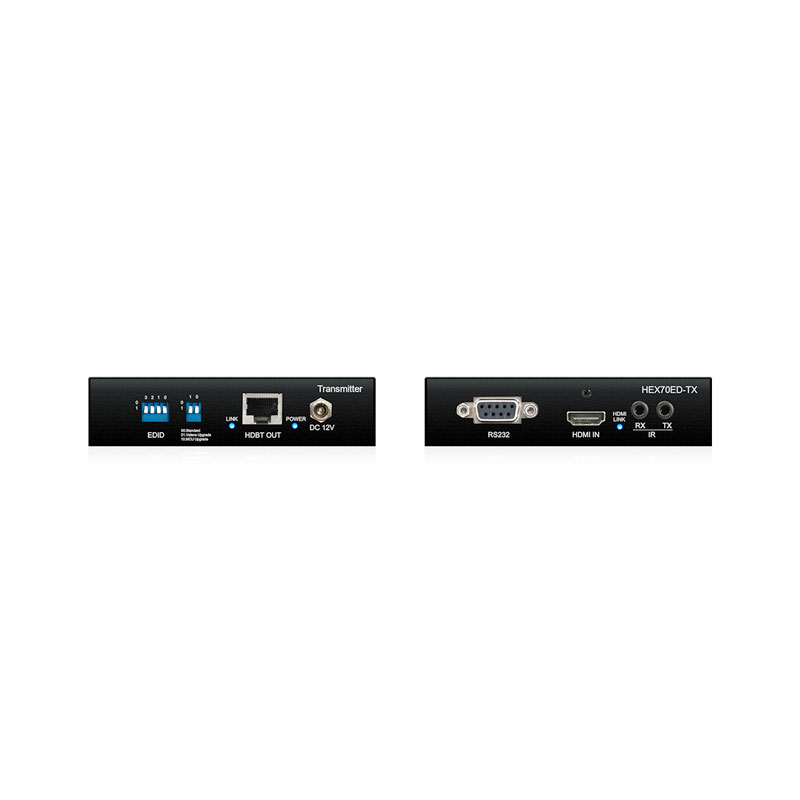

1x HEX70ED-TX

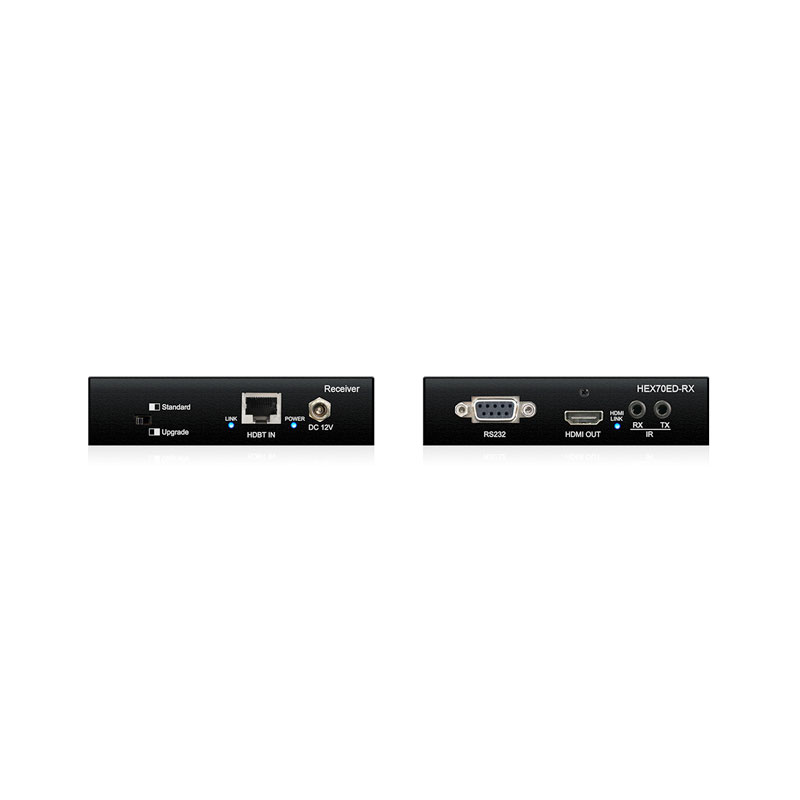

1x HEX70ED-RX
2x Mounting brackets
1x 12V / 2A power supply
1x IR emitter
1x IR receiver
1x User manual
