Description

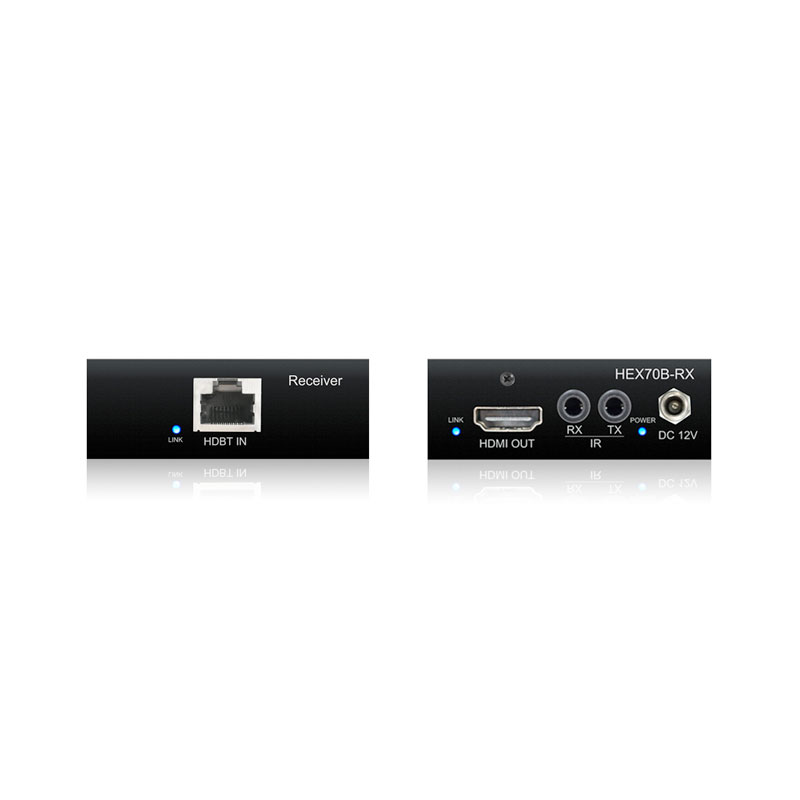

BLUSTREAM HDBaseT Receiver – 70m (4K up to 40m), Bi-directional IR, PoH (PoE), Compatible with HMXL88 & HSP14AB
Our HEX70B-RX 4K HDBaseT™ receiver offers market leading features and outstanding value. The product receives HDMI, Bi-directional IR and Bi-directional PoH (PoE) up to lengths of 70m from a compatible HDBaseT™ transmitter.
Key Features
- Receives a HDBaseT™ signal from a compatible HDBaseT™ transmitter over distances of up to 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports bi-directional PoH (Power over HDBaseT™) to power receiver from compatible Blustream Matrix or Transmitter
- Supports bi-directional IR from all input and output locations
- HDCP compliant
Specifications
- Video input: 1x HDBaseT™ RJ45 connector
- Video output: 1x HDMI Type A, 19-pin, female
- IR input 1x 3.5mm stereo jack
- IR output 1x 3.5mm mono jack
- Power supplied from compatible Blustream Matrix or Transmitter unit
- Power Consumption 9.5W
- Product Dimensions (WxDxH): 110 x 75 x 26mm (with connections)
- Product Dimensions (WxDxH): 105 x 75 x 26mm (without connections)
- Product Weight: 0.25kg (excluding accessories)
- Carton / Box Dimensions (WxDxH): 140 x 115 x 35mm
- Shipping Weight: 0.35kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Mounting kit included
Box Contents
1x HEX70B-RX
1x Mounting brackets
