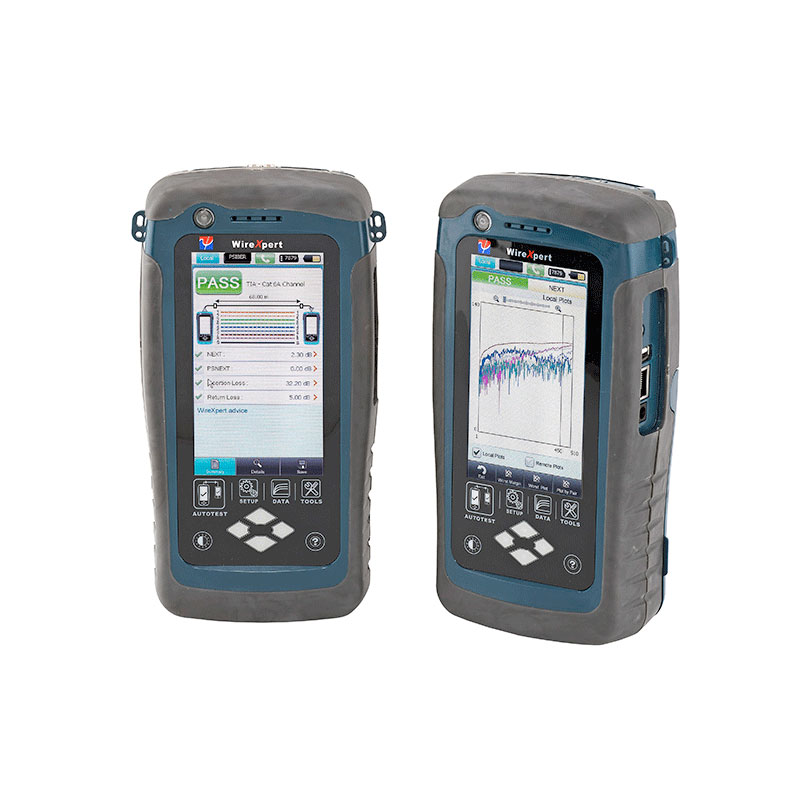

WireXpert Cable Certifier

The WireXpert has a revolutionary 1 - 1600 MHz frequency measurement range. It has been fully qualified and approved by major cable and connectivity manufacturers for all levels of testing. It is also the only tester approved by those manufacturers for the most stringent Category 7A cabling solutions. As a result, it is the only instrument you need to certify cables for today, and well into the future.

The WireXpert engine lets you deliver an industry-leading 9 seconds for tests through Category 6A and a mere 14 seconds for Category 7/7A. The system’s ReportXpert generates complete, ultra professional documentation of all testing, for installer and customers’ records.

Cable certifying is all about speed and accuracy, and the WireXpert takes the whole experience farther and faster. The The Dual Control System (DCS) even reduces the amount of walking required between drops and allows one person, instead of two people, to easily perform certification. In addition, you have access to evolving, easy-downloadable software updates and enhancements for your WireXpert.

Copper

• Certify proposed Category 7A cabling systems over its entire specified frequency range with the required measurement accuracy. The wire expert is the first tester with these capabilities.

• WireXpert’s measurement engine is already capable of testing against future cabling standards required for 40G and 100G Ethernet over copper cables.

• Independent adaptor modules for both Channel and permanent link testing have a replaceable permanent link cord.

• Internal memory is capable of storing over 2000 test results complete with graphical data.

• Extensive cable database and predefined test settings minimize startup time and potential errors.

• Customizeable test limits can easily be created to meet any unique testing parameters.

• The powerful Li-Ion battery provides a full workday of battery life, allowing you to complete your project on a single charge.

Fiber

Optional fiber adapters make full certification testing for MM (multimode) and SM (single mode) fiber installations possible.

TIER 1 CERTIFICATION

• Loss and Length measurements.

• Certification as per ISO/IEC 14763-3 & TIA 568 C.3.

• 8 secs. AutoTest.

• Complies to Encircled Flux requirement.

SET REFERENCE METHOD

• 1 Jumper Method , 2 Jumper Method, or 3 Jumper Method.

• Single Mode, Dual Wavelength, 1310nm, 1550nm.

• SC Connector Interface, 24 dB Dynamic Range.

• Length Measurement : 0-20km.

• Multi Mode, Dual Wavelength.

• 850 nm VCSEL, 1300 nm LED.

• SC Connector Interface.

• 24 dB Dynamic Range.

• Length Measurement : 0-2000m.

TEST METHOD

• Single Directional, Bi-Directional.

• Single Ended Test, Dual Ended Test.
