Description

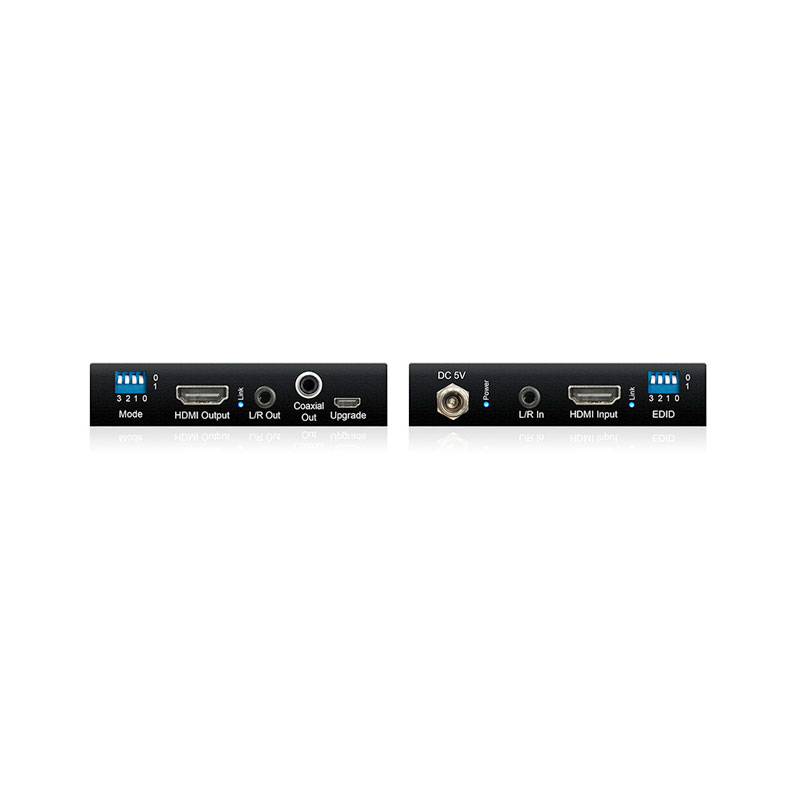

Our Blustream SC11HD-V2 is a HDMI 4K scaler, designed for installations with multiple displays that support different maximum video resolutions. The SC11HD-V2 is ideal for multi-room installations with multiple output resolution requirements.
The SC11HD-V2 supports down-scaling of 4K (inc HDR) video to 1080p and supports HDCP2.2 with advanced EDID management. It also features either de-embedding or embedding audio within the HDMI signal path.
Key Features
- HDMI 4K video scaler
- Supports 4K UHD video input (3840 x 2160 @24/30Hz 4:4:4 with HDR), 3840 x 2160 @ 50/60Hz 4:2:0)
- HDMI output will downscale 4K@24/25/30Hz to 1080p@24/25/30Hz, and 4K@50/60Hz 4:2:0 to 1080p@50/60Hz
- Can be configured to work as either a HDMI audio de-embedder or audio embedder
- HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently (2ch PCM only)
- Embed analogue L/R 2ch audio input onto HDMI output
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Advanced EDID management
- HDCP2.2 support
- CEC and ARC pass through
Specifications
- Audio Input Connectors: 1x Analogue Left/Right audio (3.5mm stereo jack)
- Audio Output Connectors: 1x RCA (SPDIF) & 1x Analogue Left/Right audio (3.5mm stereo jack)
- Video Input Connectors: 1x HDMI Type A
- Video Output Connectors: 1x HDMI Type A
- EDID: 4-PIN DIP switch
- Mode: 4-PIN DIP switch
- Product upgrade: 1x Female Micro USB
- Dimensions including connections (W x H x D): 83mm x 15mm x 83mm
- Shipping Weight: 0.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V/1A DC
Box Contents
1 x SC11HD-V2
1 x 5V/1A DC power supply
1 x Mounting kit
1 x User manual
