BLUSTREAM HDBaseT™ CSC Extender Set Supporting HDMI2.0 4K60Hz 4:4:4 up to 40m (1080p up to 70m), Bi-directional IR & RS-232, EDID Management, HDMI Loop-Out, Audio Breakout, Bi-directional PoH (PoE), HDCP2.2
Our HEX70CS-KIT HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.
The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m (4K to 40m). The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The Receiver features simultaneous analogue stereo and digital coax audio breakout.
Key Features
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
- Video down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out.
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p video up to 70m
- Features 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Supports bi-directional RS-232 pass through
- Supports bi-directional IR pass through
- Supplied with Blustream 5V IR receiver and emitter
- Advanced EDID management
- HDCP2.2 compliant
Specifications

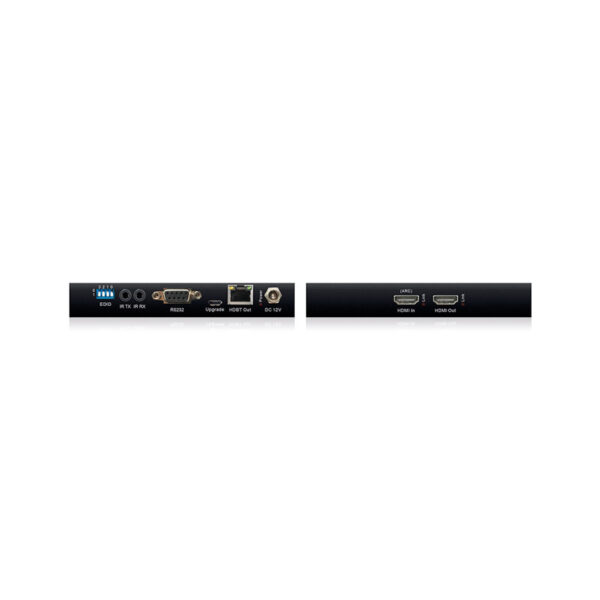

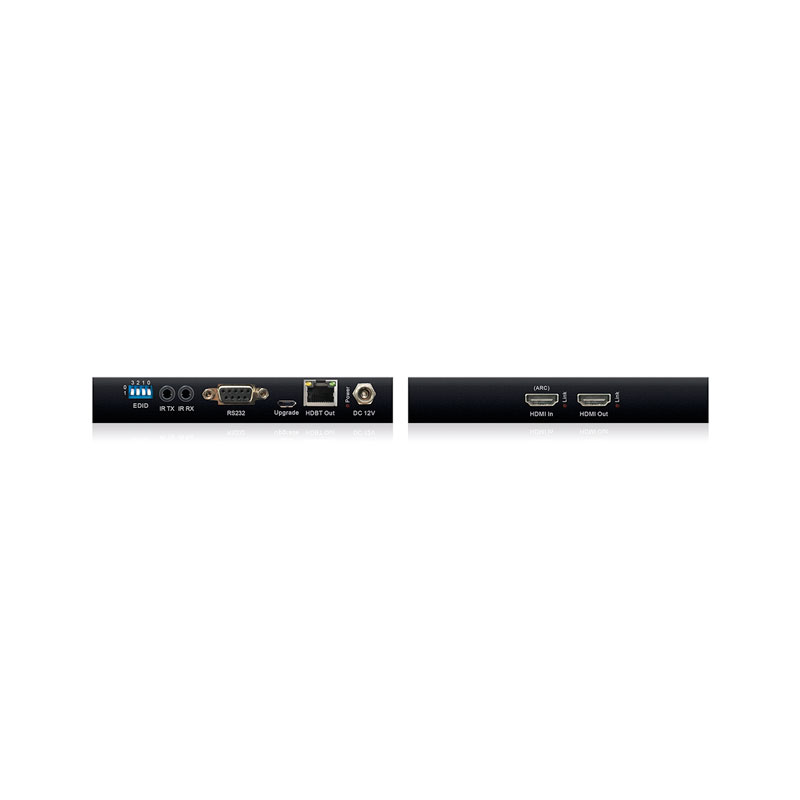

- HEX70CS-TX transmitter
– Video Input Connectors: 1x HDMI Type A, female
– Video Output Connectors: 1x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
– RS-232 serial port: 1x DB-9 female
– IR Input ports: 1x 3.5mm stereo jack
– IR Output ports: 1x 3.5mm mono jack

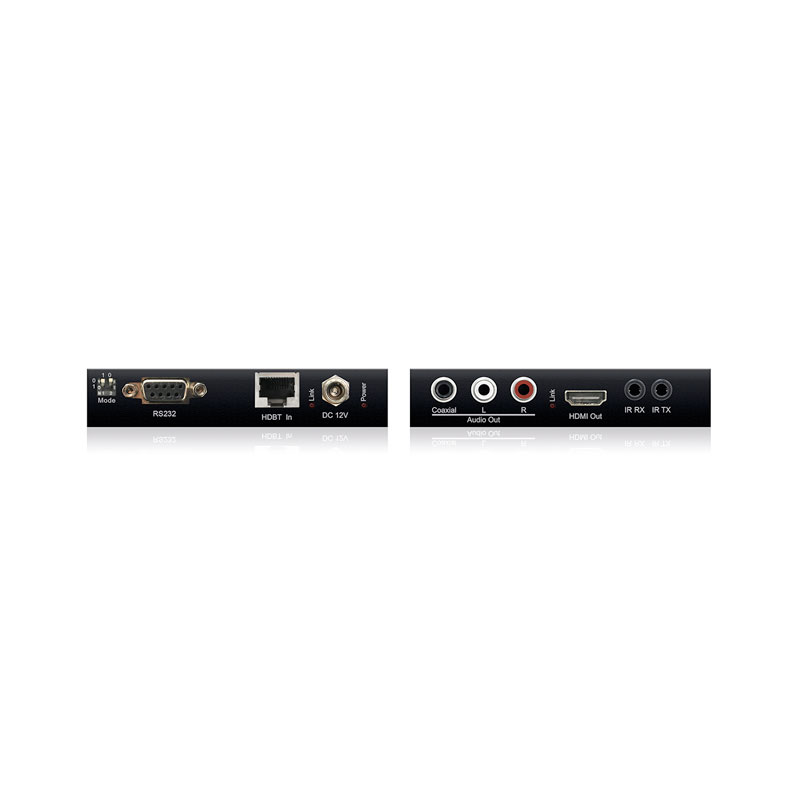

– EDID DIP switch: 4-pin - HEX70CS-RX receiver
– Video Input Connectors: 1x HDBaseT™ RJ45 connector
– Video Output Connectors: 1x HDMI Type A, female
– RS-232 serial port: 1x DB-9 female
– IR Input ports: 1x 3.5mm stereo jack
– IR Output ports: 1x 3.5mm mono jack
– Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/ Right) - Power Supply: 12V / 2A DC, screw type connector
- Power Consumption: 12.7W
- Transmitter Dimensions (WxDxH): 143 x 134 x 22mm (without connections)
- Transmitter Dimensions (WxDxH): 143 x 141 x 22mm (with connections)
- Receiver Dimensions (WxDxH): 113 x 124 x 22mm (without connections)
- Receiver Dimensions (WxDxH): 113 x 138 x 22mm (with connections)
- Ind. Extender Weight: 0.35kg (excluding accessories)
- Carton / Box Dimensions (WxDxH): TBCmm
- Shipping Weight: 1.4kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
Box Contents
1x HEX70CS-TX
1x HEX70CS-RX
2x Mounting brackets
1x 12V / 2A power supply
1x IR emitter
1x IR receiver
1x Quick Reference Guide
