Description

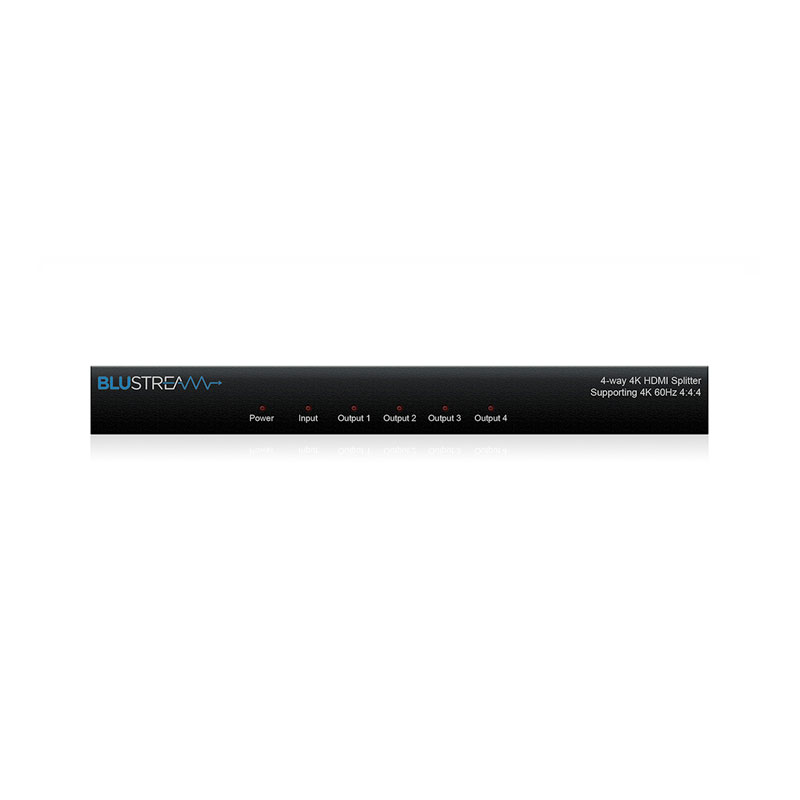

BLUSTREAM 4-Way 4K HDMI 18Gbps HDMI 2.0 splitter with Audio Breakout and EDID Management.
Our SP14AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
Key Features
- Features 1x HDMI input that is replicated to 4x HDMI outputs
- Supports HDMI 2.0 18 Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Advanced EDID management
- HDCP 2.2 Support
Specification

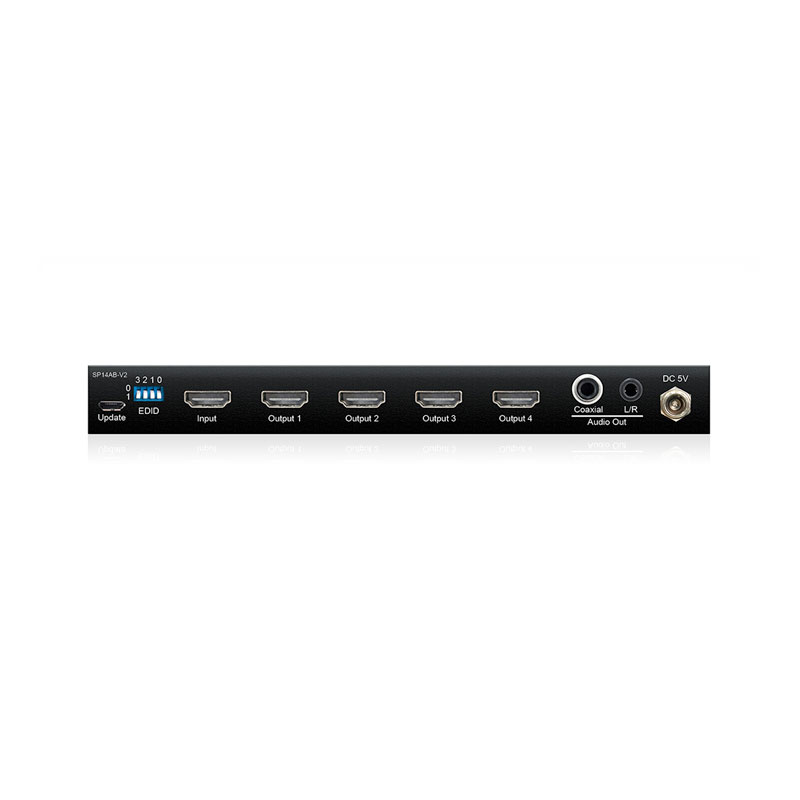

- Video Input Connectors: 1x HDMI Type A
- Video Output Connectors: 4x HDMI Type A
- EDID: 4-PIN DIP switch
- Audio Output Connectors: 1x RCA (SPDIF), 1x Analogue audio L/R (3.5mm stereo Jack)
- Dimensions (W x D x H): 203mm x 84mm x 23mm , without feet
- Shipping Weight: 0.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V/2A DC
Box Contents
1 x SP14AB-V2
1 x 5V/2A DC power supply
1 x Quick Reference Guide
