Description
The Blustream SC12SP-V2 is a 4K HDMI 2.0 splitter with in-built scaler, designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions. The SC12SP-V2 supports down-scaling of up to 4K 60Hz 4:4:4 video to various lower resolution video formats. The SC12SP-V2 also includes audio breakout, advanced EDID management and supports HDCP 2.2.
Key Features
- Features 1x HDMI input that is replicated to 2x HDMI outputs
- Supports HDMI 2.0 18 Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- HDMI output 2 supports 4K UHD video pass-through
- HDMI output 1 will down-scale the video input to the following formats:
– 1080P@ 24/25/30/50/60Hz (for screens that do not support 4K)
– 4K 50/60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4) - Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD
- Master Audio transmission
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Advanced EDID management
- HDCP 2.2 support
Specifications

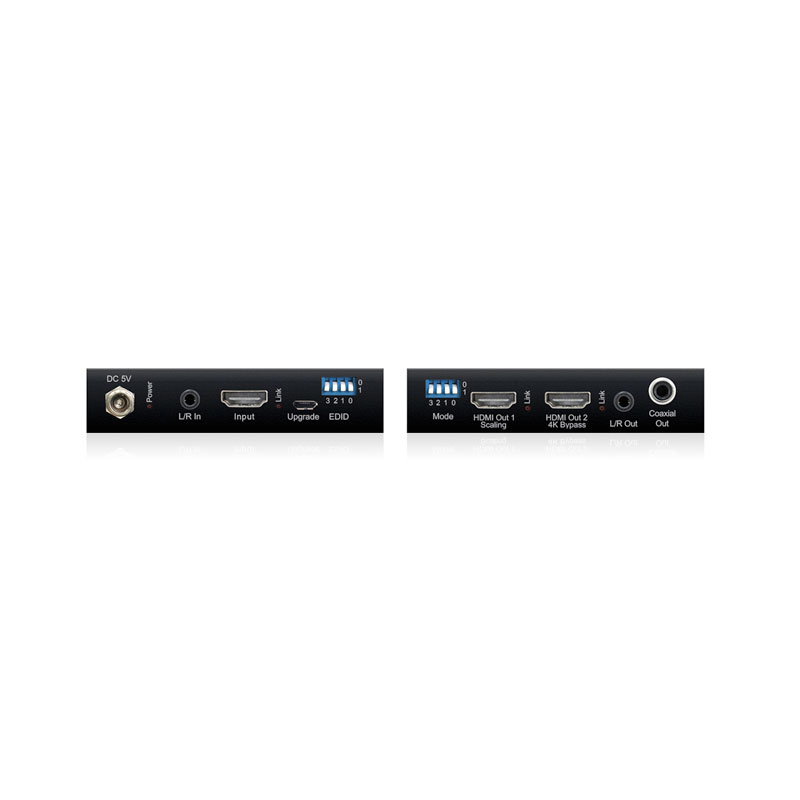

- Video Input Connectors: 1x HDMI Type A, 19-pin, female
- Video Output Connectors: 2x HDMI Type A, 19-pin, female
- Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)
- EDID: 4-PIN DIP switch
- Product upgrade: 1x 3-Pin Phoenix connector & 1x Type A USB female
- Dimensions (W x H x D): 122mm x 23mm x 135mm
- Shipping Weight: 0.8kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V/1A DC
Box Contents
1 x SC12SP-V2
1 x 5V/1A DC power supply
1 x Mounting kit
1 x Quick Reference Guide
