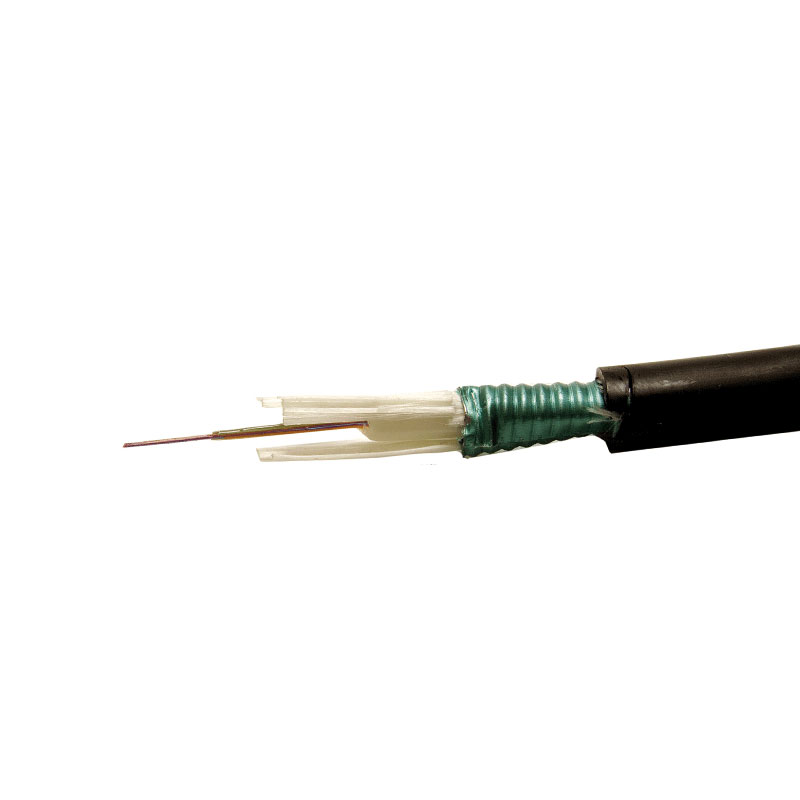

CSTA Fibre Cable

Please login or register to see price, or request a quote

Our Corrugated Steel Tape Fibre cables are constructed using colour coded buffered fibres which can contain up to 24 50/125 Multimode fibres.
Protected with a water blocking gel filled tube and corrugated steel tape and a LSZH sheath. Suitable for direct burial and occasional flooded ducts.

Specification:

  • Suitable for internal and external use
  • Polyethylene jacket available
  • Cable consists of a single gel filled tube containing 2 to 24 fibres
  • CST armour provides resistance against rodents
  • Crush proof
Clear
Compare
SKU: XCSTXLT Categories: ,

Description

Our Armoured Fibre Optic Cable is constructed using corrugated steel tape and colour coded buffered fibres, which can contain up to 24 50/125 Multimode fibres.
Protected with a water blocking gel filled tube and corrugated steel tape and a LSZH sheath. Suitable for direct burial and occasional flooded ducts.
Fibre Performance
Fibre Type
Wavelength
Typical Bandwidth
  Typical Drive Distance
Ethernet
Fast Ethernet 11db budget
Gigabit Ethernet 3.6db budget
10G Ethernet 2.6db budget
40G Ethernet 1.9db budget
100G Ethernet 1.9/1.5db budget

OM1
850nm
200MHz
2000m
300m
275m
26m
N/S
N/S
1300/1310nm
500MHz
N/S
2000m
550m
N/S
N/S
N/S

OM2
850nm
500MHz
2000m
300m
550m
82m
N/S
N/S
1300/1310nm
800MHz
N/S
2000m
550m
82m
N/S
N/S

OM3
850nm
1500MHz
2000m
300m
550m
300m
100m
100m
1300/1310nm
500MHz
N/S
2000m
550m
300m
N/S
N/S

OM4
850nm
3500MHz
N/S
N/S
550m
550m
150m
150m
1300/1310nm
500MHz
N/S
N/S
550m
550m

OS2
1310nm
N/A
N/S
N/S
5000m
1000m
10000m
10000m
1550nm
N/A
N/S
N/S
N/S
40000m
40000m
40000m

Armoured Fibre Optic Cable Specification:

  • Suitable for internal and external use
  • Polyethylene jacket available
  • Cable consists of a single gel filled tube containing 2 to 24 fibres
  • CST armour provides resistance against rodents
  • Crush proof
  • Aramid yarn or fibre glass is wound around the tube
  • A ripcord is located under the jacket to facilitate jacket removal
  • Suitable for ducts and direct burial
  • Suitable for occasional flooded ducts
  • Wide operating temperature range
  • Wide range of jacket options for different applications
  • When there are more than 12 fibres, they are divided in two groups where a coloured thread identifies each group
  • Over 24 fibres the cable is constructed in a multi loose tube construction
  • Available in singlemode, 50/125um, 62.5/125um and OM3
  • Available in single and multi loose tube constructions
  • LSZH sheath for internal / external use
  • Cables tested according to TIA/EIA-455, IEC-60794-1-2 and EN-187000
  • Cables ordered with PVC or LSZH jackets meet IEC-60332-1 standard. Upon request, cables meeting the IEC-60332-3 can be supplied
