Patch App & Go T1 is a one man Data Continuity Tester and Cable Tracer, powered by any mobile device running on android or IOS.

Once the app has been downloaded to your device, testing or tracing any 4 pair Lan cable becomes  a quick and easy process.

Compare
SKU: PAGT001 Category:

Description

Patch App & Go T1 is a one man Data Continuity Tester and Cable Tracer, powered by any mobile device running on android or IOS. Once the app has been downloaded to your device, testing or tracing any 4 pair Lan cable becomes  a quick and easy process.

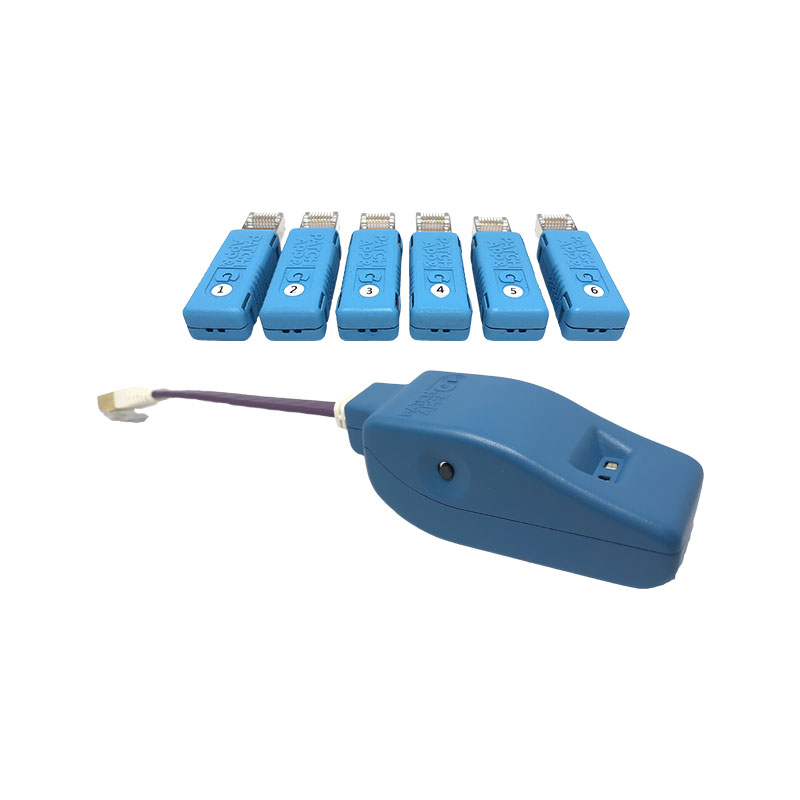

Each Tester is supplied with 6 Smart Remote Plugs (with the option of buying more)which are individual programmed with numbers from 1 to 6. As each test is carried out, the tester will report back to the user a pass or fail and which Patch Panel socket the plug is plugged in to.

The Patch App & Go T1 is suitable for testing Cat 5e, Cat 6, Cat 6A, unshielded and shielded network cables. As the device performs each test the results will appear as a pass or fail on your mobile device. When a fail is reported, the app will visually display the fault, instantly identifying wiremap errors such as mis-wires, split pairs, shorts and open ends.

If a network installation has not be labelled correctly or you need to trace unidentified ports, then the Smart Remote Plugs makes tracing from one end of the cable to the other a quick and easy process. By inserting the Smart Remote Plugs into the ports of a Patch Panel, Patch App & Go T1 will send a trace from the Wall Outlet on the other end of the cable back to the uniquely numbered Smart Remote Plug, instantly notifying the user of which number plug it has found, allowing the user to correctly label the link.

Patch App & Go T1 eliminates the need and additional expense of having two men on site to carry out testing, or the time consuming method of testing by yourself. By using as many Smart Remote Plugs as you have, you can simply insert the plugs into the Patch Panel sockets and begin testing your installation.
