BLUSTREAM Slim Line HDMI Over CAT 6 Extender Set (EX40B-KIT)

Please login or register to see price, or request a quote

BLUSTREAM Slim Line HDMI Over CAT 6 Extender Set (1080i up to 50m , 1080P up to 40m), 2-Way IR.

Our Slim-Line EX40B-KIT HDMI™ extender set offers HDMI distribution over a single CAT cable at outstanding value. The product delivers HDMI & Bi-directional IR up to lengths of 40m @ 1080p and 50m @ 1080i.

Compare
SKU: EX40B-KIT Categories: , ,

Description

BLUSTREAM Slim Line HDMI Over CAT 6 Extender Set (1080i up to 50m , 1080P up to 40m), 2-Way IR.

Our Slim-Line EX40B-KIT HDMI™ extender set offers HDMI distribution over a single CAT cable at outstanding value. The product delivers HDMI & Bi-directional IR up to lengths of 40m @ 1080p and 50m @ 1080i.


Key Features

  • Extends HDMI up to distances of 40m over a single CAT cable (1080i up to 50m)
  • Supports video resolutions 480i-1080p*
  • Supports Bi-directional IR from input and output locations
  • Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports full 3D signal display
  • Supplied with Blustream IR receiver and emitter
  • Requires local power at both Transmitter and Receiver
  • EDID management
  • HDCP1.4 compliant

* 8-bit colour support only


Specifications

  • Video input

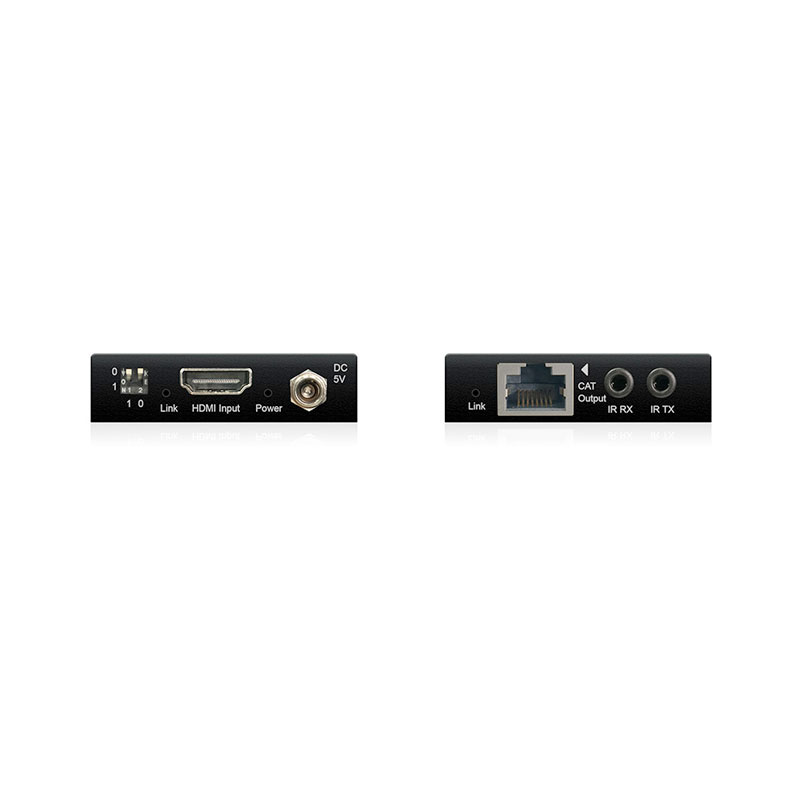

    – EX40B-TX: 1x HDMI Type A, 19-pin, female
    – EX40B-RX: 1x RJ45
  • Video output
    – EX40B-TX: 1x RJ45

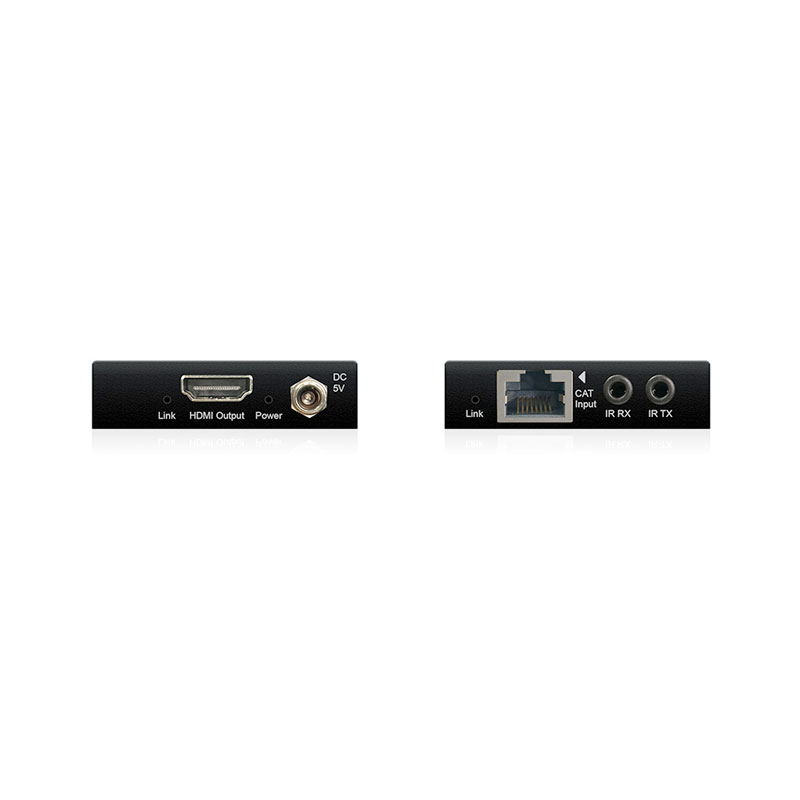

    – EX40B-RX: 1x HDMI Type A, 19-pin, female
  • IR input 1x 3.5mm stereo jack
  • IR output 1x 3.5mm mono jack
  • Power Supply 5V/1A DC, screw type connector, one per balun required
  • Dimensions with connections (WxHxD): 58 x 15 x 96mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Mounting kit included

ox Contents

1 x EX40B-TX
1 x EX40B-RX
2 x 5V/1A DC power supply
1 x IR emitter
1 x IR receiver
2 x Mounting brackets
1 x User manual
