Description
BLUSTREAM HDMI over Coax Extender Set – 120m 1080p & Bi-directional IR.
Our CEX120B-KIT HDMI™ extender set offers HDMI distribution over a single Coaxial cable. The product delivers HDMI & Bi-directional IR up to lengths of 120m @ 1080p.
Key Features
- Extends HDMI 1080p up to a distances of 120m over a single Coaxial cable
- Supports the following video resolutions – 480i, 576i, 720p, 1080i and 1080p
- Supports Bi-directional IR from input and output locations
- Supports audio formats up to 7.1CH
- Supplied with Blustream IR receiver and emitter
- Requires local power at both Transmitter and Receiver
- Smart EDID management
- HDCP1.4 compliant
Specifications

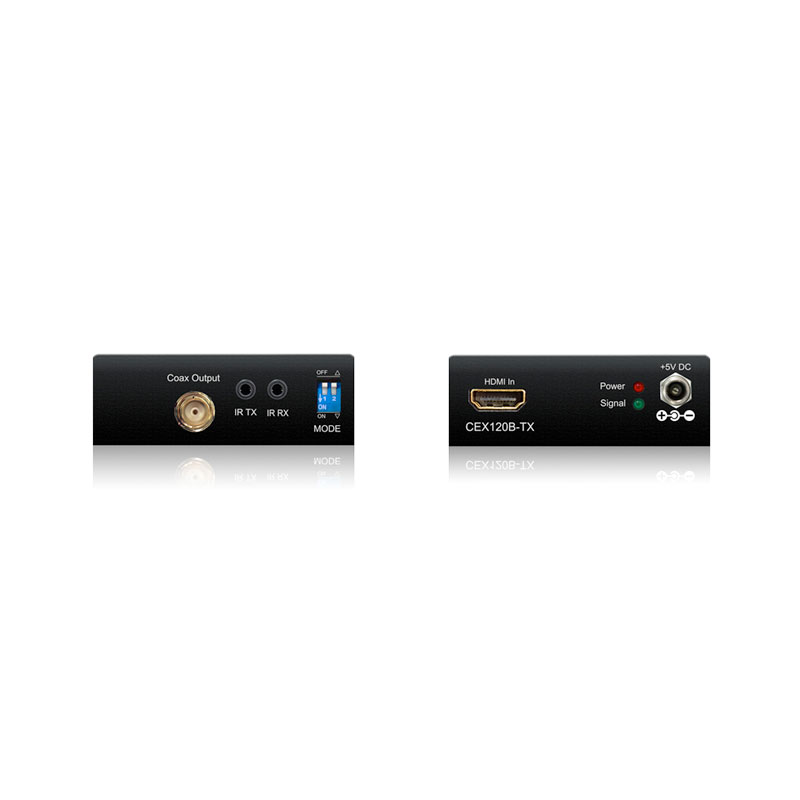

CEX120B-TX
- Video Input Connectors: 1x HDMI Type A
- Video Output Connectors: 1x BNC connector
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- Dimensions (Casing – W x D x H): 79mm x 84mm x 28mm

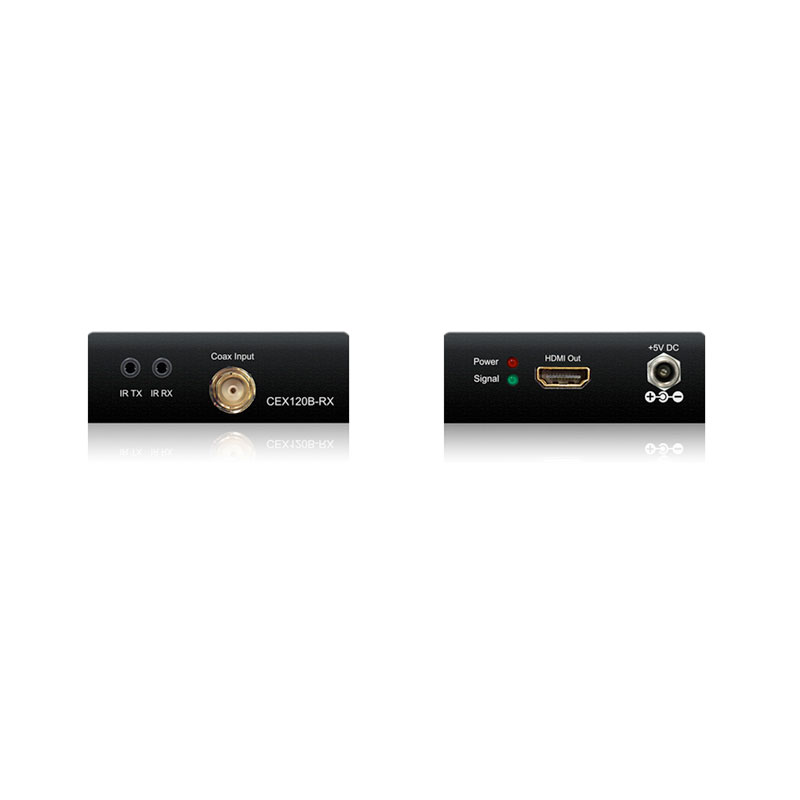

CEX120B-RX
- Video Input Connectors: 1x BNC connector
- Video Output Connectors: 1x HDMI Type A
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- Dimensions (Casing – W x D x H): 79mm x 84mm x 28mm
Overall
- Supported Video Resolutions: 480i 30Hz, 576i 25Hz, 720p 50Hz, 720p 60Hz, 1080i 25Hz, 1080i 30Hz, 1080p 24HZ, 1080p 30Hz, 1080p 60Hz
- Note: 4K, 3D and 480i/p Video is not supported
- Supported Audio Resolutions: Dolby Digital (up to 7.1CH), DTS ES (up to 7.1CH), 2CH PCM
- Unit Weight: 2x 0.25Kg
- Shipping Weight: 1.1Kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Box Contents
1 x CEX120B-TX
1 x CEX120B-RX
2 x 5V/1.2A DC power supply
1 x IR1 emitter
1 x IRR receiver
2 x Mounting brackets
2 x F-type to BNC adaptor
1 x User manual
