Description
BLUSTREAM HDBaseT Extender Set – 150m (4K up to 100m), Bi-directional IR, Bi-directional PoH (PoE), Audio Breakout, ARC, RS-232, 3 x LAN switch.
Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilising CSC technology with video down conversion. The HEX150CS-KIT supports HDMI, bi-directional IR, RS-232 and PoH (PoE) up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.
Key Features
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR support
- Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 100m
- Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility, and handshaking issues
- Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
- Supports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Bi-directional 10/100BaseT Ethernet pass through
- Bi-directional IR & RS-232 pass through
- Supplied with Blustream 5V IR receiver and emitter
- Bi-directional PoH (Power over HDBaseT™) to power extenders from either transmitter or receiver end
- Advanced EDID management
- HDCP 2.2 support
Specifications

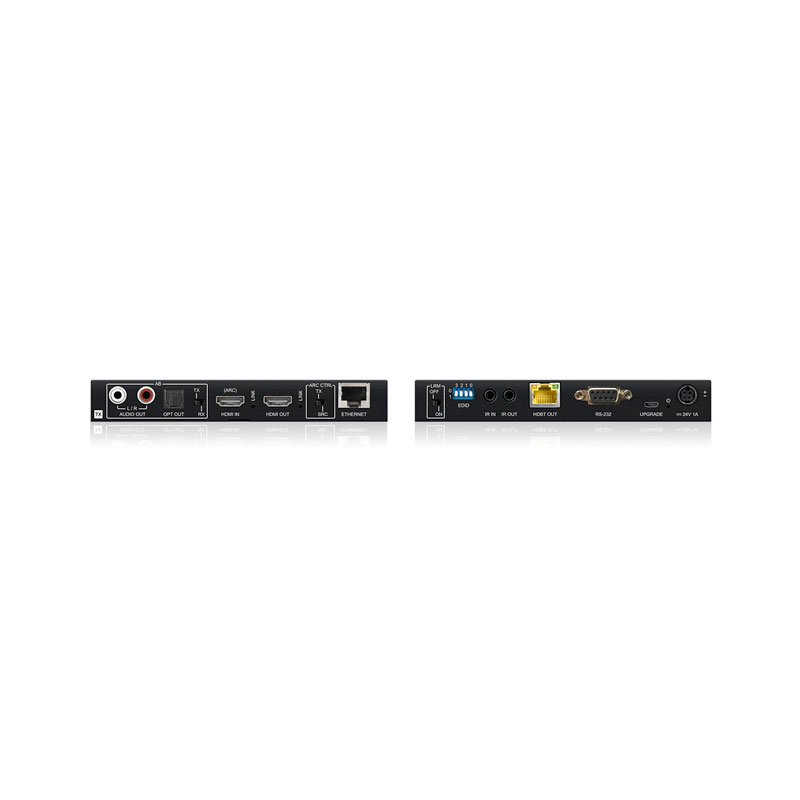

HEX150CS-TX - Video Input Connectors: 1x HDMI Type A, female
- Video Output Connectors: 1x HDBaseT™ RJ45 connector
- Audio Output Connectors: 2x RCA (L/R), 1x Optical (SPDIF)
- Ethernet port: 1x RJ45 connector
- RS-232 serial port: 1x DB-9 female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- EDID: 4-PIN DIP switch
- Power Supply: 1x 24V/1A DC, 4-pin DIN connector

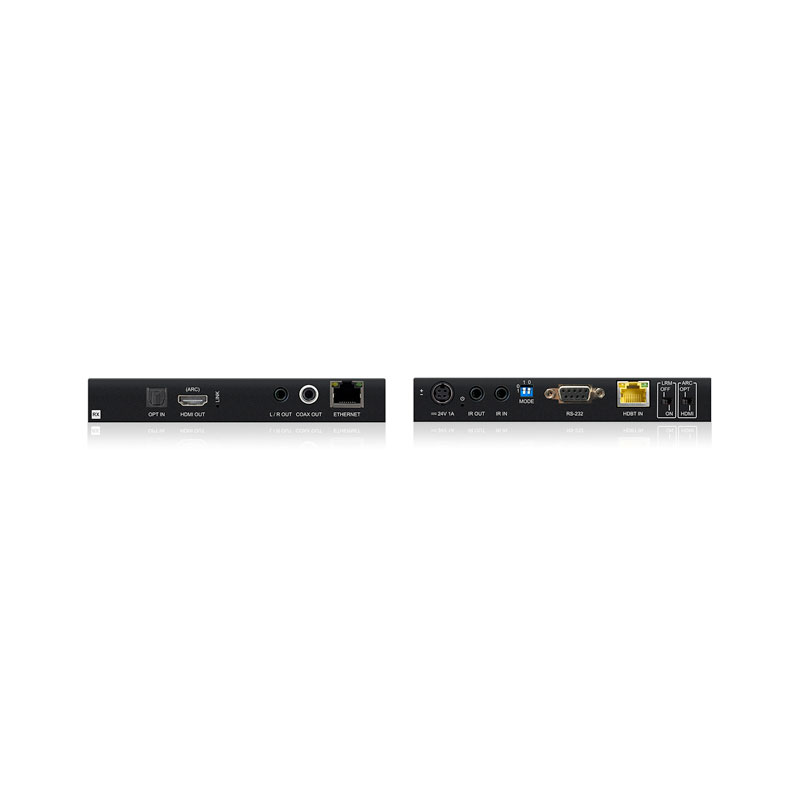

HEX150CS-RX
- Video Input Connectors: 1x HDBaseT™ RJ45 connector,
- Video Output Connectors: 1x HDMI Type A, female
- Audio Input Connectors:1x Optical (SPDIF)
- Ethernet port: 1x RJ45 connector,
- RS-232 serial port: 1x DB-9 female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- Power Supply: 1x 24V/1A DC, 4-pin DIN connector
- Casing Dimensions (WxDxH ): 148mm x 134mm x 22mm (RX), 156mm x 123mm x 23mm (TX)
- Dimensions including connections (WxDxH ): 148mm x 153mm x 22mm (RX), 156mm x 135mm x 23mm (TX)
- Shipping Weight (Kit): 1.6kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
- Power Supply: 1x 24V/1A DC, screw connector
