Description
The BLUSTREAM UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch.

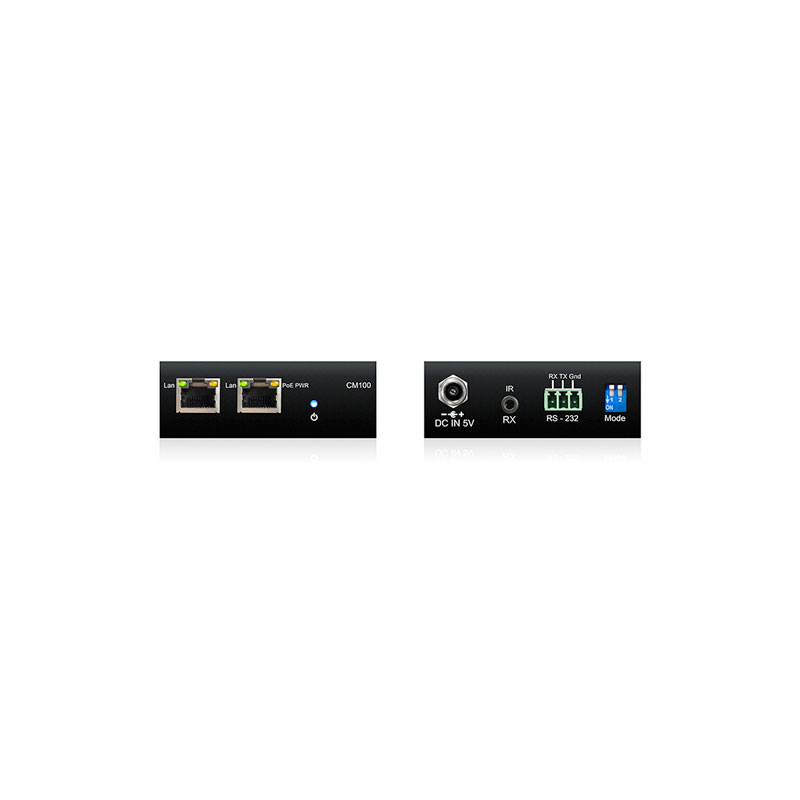

The CM100 Control Module allows simple third party control of the Multicast system using TCP/IP, RS-232 or IR.
The system wizard PC configuration program and pre-built Blustream product drivers simplify product installation and negate the need for an understanding of complex network infrastructures.
Key Features
- Simple system configuration using the Blustream PC program
- 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independently configurable Control IP address
- Allows simplified TCP/IP control of Multicast system
- RS-232 integration for control of Multicast system
- IR integration for control of Multicast system
- PoE (Power over Ethernet) to power Blustream product from PoE switch
- Local 5V power supply (optional) should Ethernet switch not support PoE
- 3rd Party drivers available for major home control brands
Specifications
- Ethernet port: 2x LAN RJ45 connector (1x PoE support)
- RS-232 serial port: 1x 3-Pin Phoenix connector
- IR Input ports: 1x 3.5mm stereo jack
- Dimensions (W x D x H ): 89mm x 85mm x 23mm
- Shipping Weight (Kit): 0.4kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
