UniFi UAP

Please login or register to see price, or request a quote

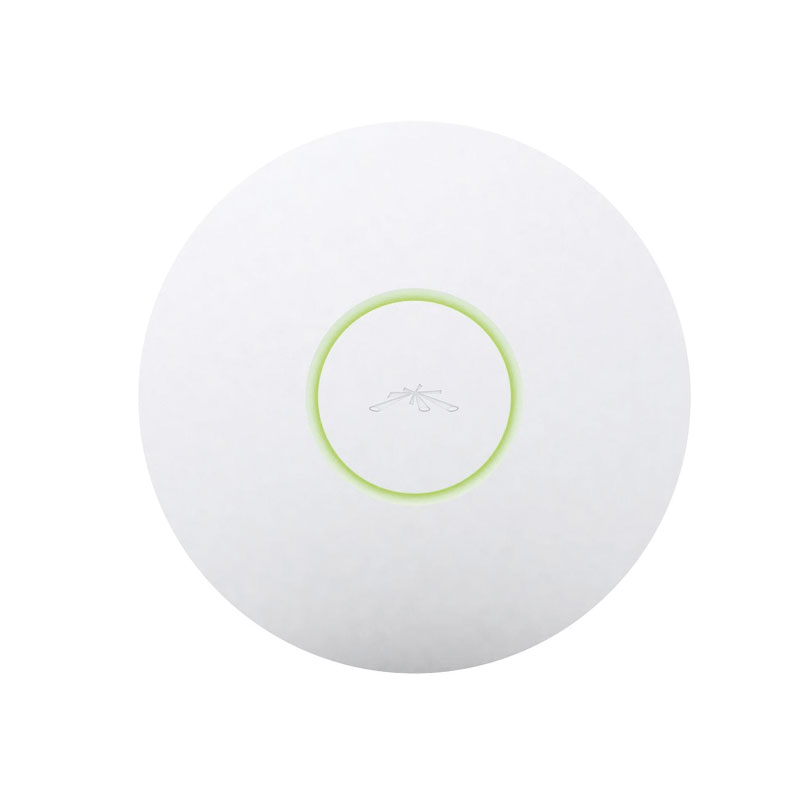

Ubiquiti Unifi UAP is a MIMO 802.11b/g/n wireless access point device, controllable from the Unifi management system that is scaleable to hundreds or thousands of units – the Unifi software for managing the units is free and downloadble from Ubiquiti. No expensive management software or hardware is required. The software can be installed on a PC or a MAC and allows the operator to instantly provision thousands of Unifi UAPs, map out networks, quickly manage system traffic, and further provision individual Unifi UAP devices. It is also available as an Ubiquiti Unifi UAP – 3 Pack.

Product Features:

  • Max TX Power: 23 dBm
  • VLAN 802.1Q
  • Concurrent Clients 100+
Compare
SKU: UNIFIUAP Categories: ,

Description

Ubiquiti Unifi UAP is a MIMO 802.11b/g/n wireless access point device, controllable from the Unifi management system that is scaleable to hundreds or thousands of units - the Unifi software for managing the units is free and downloadble from Ubiquiti. No expensive management software or hardware is required. The software can be installed on a PC or a MAC and allows the operator to instantly provision thousands of Unifi UAPs, map out networks, quickly manage system traffic, and further provision individual Unifi UAP devices. It is also available as an Ubiquiti Unifi UAP - 3 Pack.

Claimed throughput is up to 300Mbps speeds with ranges up to 160 metres. A higher-power version is available - the Ubiquiti UniFi UAP-LR - which will provide coverage over greater distances.

Attractive design combines with out-of-the-box deployment, including wall/ceiling mount adaptor, a mains power supply and the Unifi Software Installation CD. Power and data are carried by the ethernet cable that connects each unit to the network. Unifi unit MUST NOT be connected to a powered hub with a 48v supply - use the Ubiquiti Instant downconvertor, indoor or outdoor as appropriate.

At the front-centre of the device is a status LED ring which can provide the administrator with location tracking and alerts for each device.

Use the Ubiquiti UniFi UAP Outdoor version of UniFi to extend your indoor network to external areas.

Ubiquiti Product Features:

  • Max TX Power: 23 dBm
  • VLAN 802.1Q
  • Concurrent Clients 100+





Model Comparison Chart



Technical Specifications:

Ubiquiti Unifi UAP
Wi-Fi Standards802.11 b/g/n*
Supported Data Rates (Mbps)802.11n MCS0 - MCS15
(6.5 Mbps to 300 Mbps), HT 20/40
802.11b 1, 2, 5.5, 11
802.11g 6, 9, 12, 18, 24, 36, 48, 54
Max TX Power23 dBm
Antennas2 Integrated (supports 2x2 MIMO -spatial diversity
BSSIDUp to 4 per radio
PortsEthernet (Auto MDX, auto.sensing 10/100 Mbps)
Wireless SecurityWEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
Power Supply24V 1A PoE Adapter included
Maximum Power Consumption4W
Power MethodPassive Power over Ethernet (12-24V)
Power SaveSupported
Size20 x 20 x 3.65 cm
Weight430 g with mounting kits
MountingWall/Ceiling
Operating Temperature-10°C to 70° C (14° F to +158° F)
Operating Humidity5% - 80% Condensing
CertificationsCE, FCC, IC
Concurrent Clients100+
VLAN802.1Q
