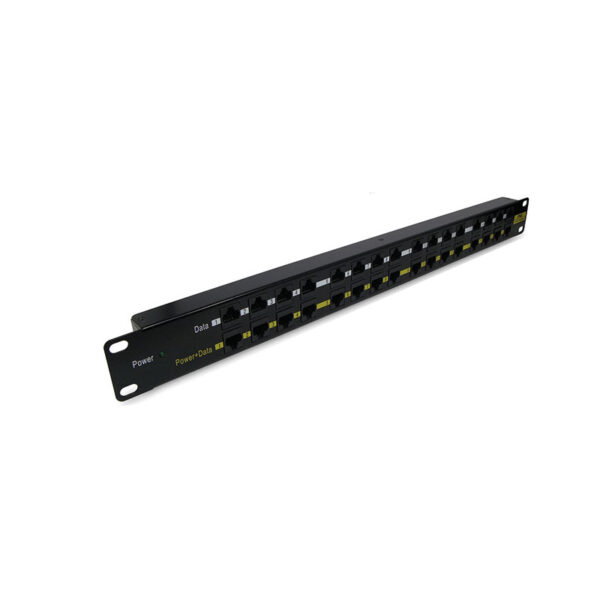

PoE Patch Panel

Please login or register to see price, or request a quote

The 12 Port PoE Patch Panel is the perfect low cost solution for providing power to any network device such as IP telephones, network security cameras, wireless access devices and free space optic products.

  • 19 inch
  • 30w Output per Port
  • 120W in Total
  • Earthing Bolt
Compare
SKU: POE12PP Categories: ,

Description

The 12 Port PoE Patch Panel is the perfect low cost solution for providing power to any network device such as IP telephones, network security cameras, wireless access devices and free space optic products.

Products such as these are usually deployed in remote locations where power is not available therefore this is the perfect solution for supplying manageable power through the data cabling infrastructure that is already in place.

Output power can be individually modified on each port depending on the remote devices power requirement. Maximum power output is 30W on full load.

Each Panel is supplied with a grounding bolt to protect against EMI.

DC Voltage 48V

Specification:

  • Input: 100-240V AC 50/60Hz
  • Output: 48V 120W (Min)
  • Data: 1/2 & 3/6
  • Power: 4/5 (+) & 7/8 (-) (48V)
  • Data in: PC/Hub/Switch
  • Weight: 0.7Kg
  • Dimensions: 482.6mm x 44.3mm x 21.8mm
  • Material: Mild Steel
  • Ethernet: 10/100mbps
  • Standard: TIA/EIA 568 Cat 5e
  • Operating Temperature: 0C-40C
  • Storage Temperature: 40C-70C
  • Operating Humidity: 10%-80%RH
  • Storage Humidity: 5%-90%RH
  • Certification: CE

Additional information

Weight1.26 kg
