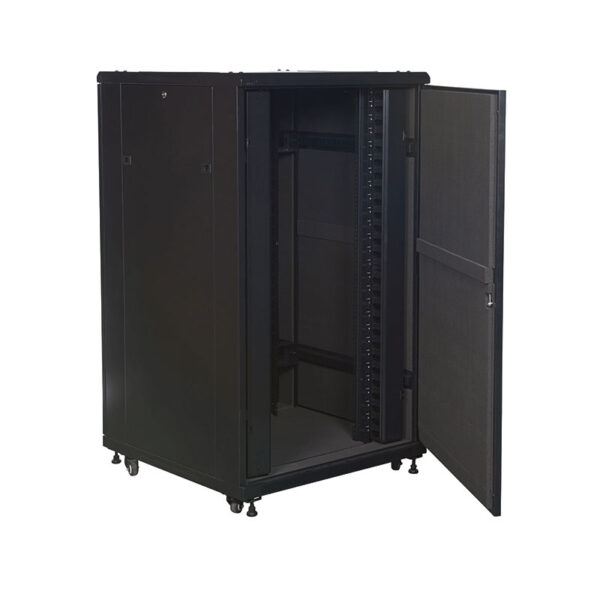

The Qube Acoustic Data Cabinet 600mm Wide is the perfect solution for larger networking installations. Available in 22, 27, 37, 42 & 47U high enclosures. Fully cladded with our state of the art 34mm acoustic foam, providing up to 25dB noise reduction, when noisy active equipment needs to be muted.
The range is available in various footprints, such as 600 x 600, 600 x 800, 800, 600, 800 x 800 & 800 x 1000mm.

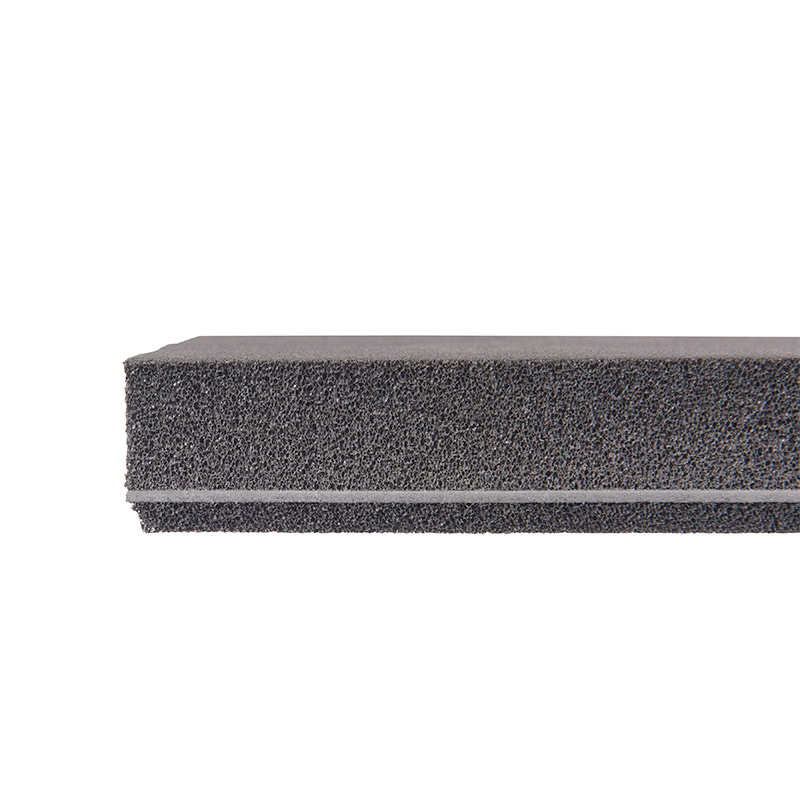

Designed to offer the best sound proof enclosures possible. Using state of the art 34mm thick cladding, comprised of absorbent Class 0 fireproof acoustic foam laminates applied to both sides of a heavy layer sound barrier membrane. Using this level of cladding, allows us to reduce noise by up to 25dB. Combining a high surface mass with flexible physical characteristics, the product offers optimum acoustic performance.
The Class 0 fire rating means that the Qube Acoustic range is ideal for demanding applications such as, marine and automotive industries.
Acoustic Data Cabinet 600mm wide Key Features
- Capable of up to 25dB noise reduction
- 34mm thick foam cladding
- Class 0 fireproof foam

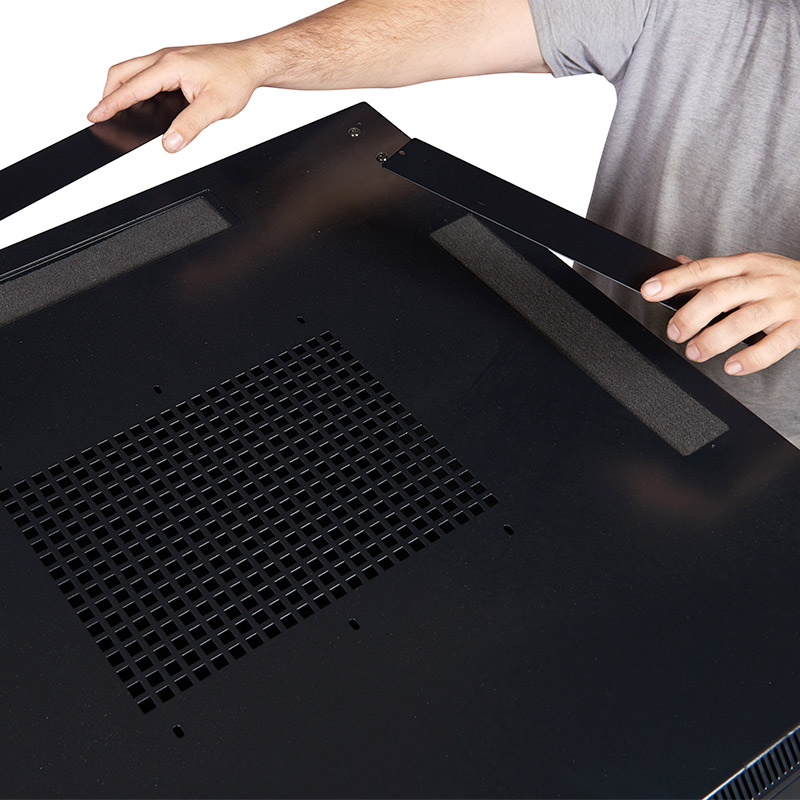

- Fan unit fitted
- 22, 27, 37, 42 & 47U high
- 600 x 600, 600 x 800 & 600 x 1000mm Footprints
- 800kg static load capacity
- 800 wide cabs fitted with vertical jumper rings (enclosed)

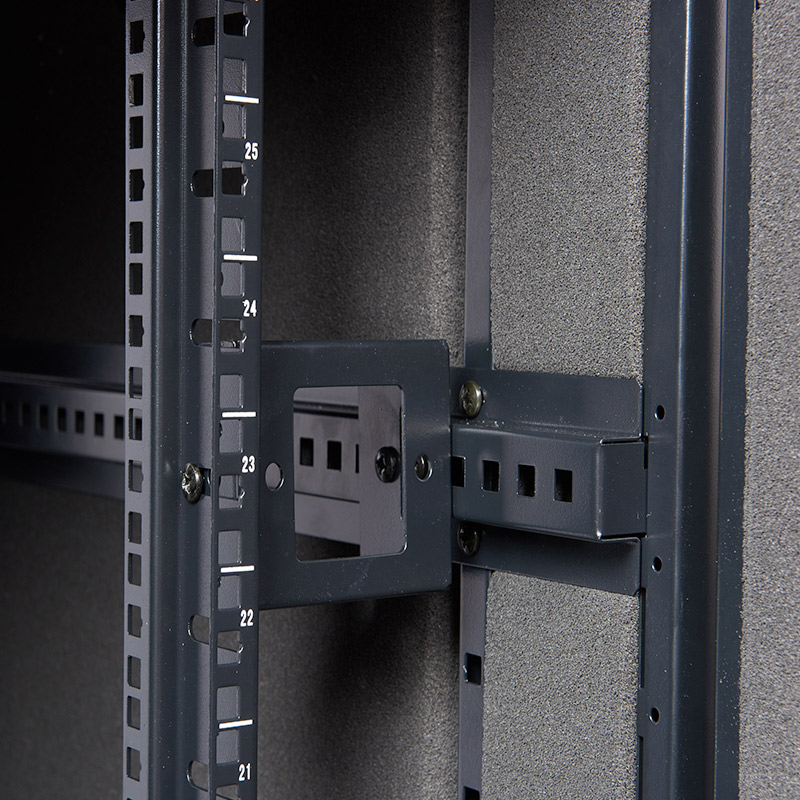

- Adjustable 19” vertical mounting profiles, front & rear
- U height markers on all four vertical mounting profiles
- Transport casters & jacking feet fitted
- Solid steel lockable front & rear doors

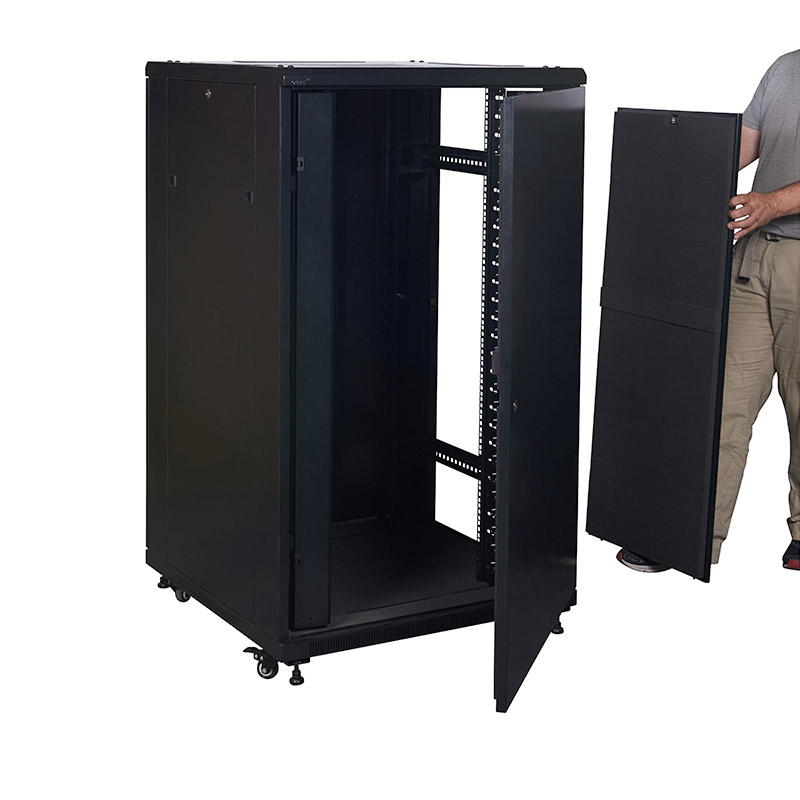

- Removable & lockable side panels
- Top & bottom cable entry
- All round earth bonding
- Black in colour (RAL9004)
