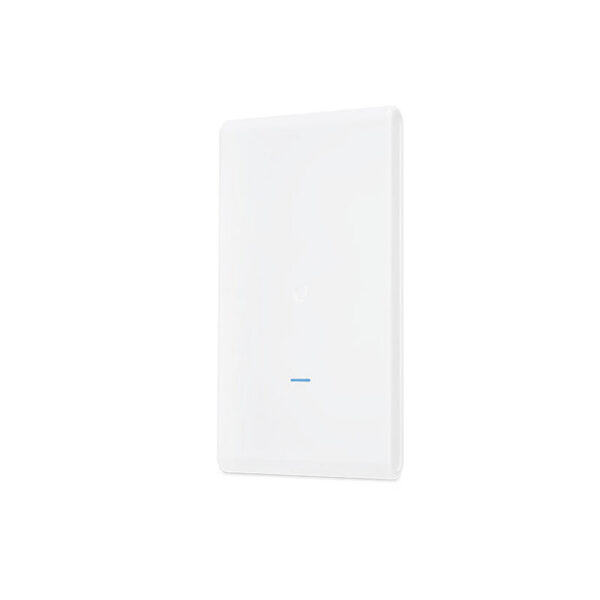

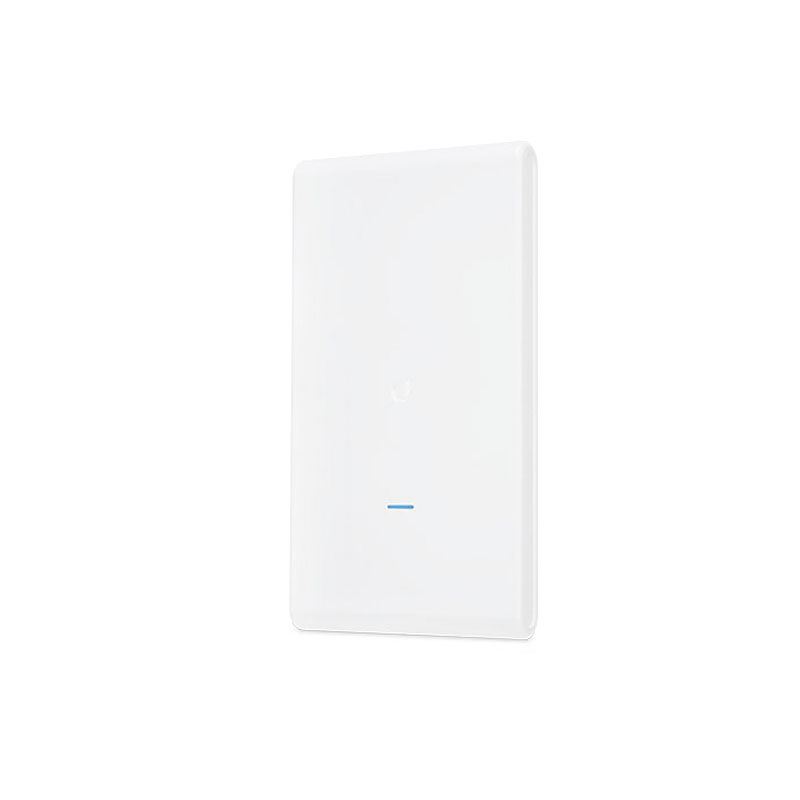

UniFi UAP AC Pro Mesh Access Point

Please login or register to see price, or request a quote

Ubiquiti’s UniFi AC Mesh Pro Access Points provide simultaneous, dual-band 3×3 MIMO. The internal antennas are well protected within this weather-resistant device, which is designed specifically for outdoor deployments. Pole and wall-mountable, the UniFi AC Mesh Pro comes with with two Gigabit Ethernet ports, allowing PoE input as well as bridging.



Product Features:

  • Up to 1300Mbps on 5GHz
  • 3×3 MIMO
  • Secondary Ethernet Port for Bridging
Compare

Description

Ubiquiti’s UniFi AC Mesh Pro Access Points provide simultaneous, dual-band 3×3 MIMO. The internal antennas are well protected within this weather-resistant device, which is designed specifically for outdoor deployments. Pole and wall-mountable, the UniFi AC Mesh Pro comes with with two Gigabit Ethernet ports, allowing PoE input as well as bridging.

Featuring Ubiquiti’s Plug & Play technology, the UniFi AC Mesh Pro is ideal for temporary outdoor deployments such as festivals or concerts. It operates on 802.3af PoE and can be powered by a suitable switch or the included Gigabit PoE adaptor.

As with all Ubiquiti UniFi products, the UniFi AC Mesh Access Point can be managed via the UniFi Cloud Controller.

Product Features:

  • Up to 1300Mbps on 5GHz
  • 3×3 MIMO
  • Secondary Ethernet Port for Bridging

Technical Specifications

Ubiquiti UniFi UAP AC Pro Mesh Access Point
Dimensions343.2 x 181.2 x 60.2 mm
Weight633 g
Networking Interface2x 10/100/1000 Ethernet Ports
ButtonsReset
Power Method802.3af PoE
(Supported Voltage Range: 44 to 57VDC)
Power Supply48V, 0.5A PoE Gigabit Adapter
Power SaveSupported
Maximum Power Consumption9W
Maximum TX Power (2.4GHz / 5GHz)22dBm / 22dBm
Antennas3x Internal Dual-Band Antennas
Gain8dBi
Wi-Fi Standards802.11 a/b/g/n/ac
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSIDUp to Four per Radio
MountingWall/Pole (Pole Kit Included)
Operating Temperature-40 to 70° C
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC
VLAN802.1Q
Advanced QoSPer-User Rate Limiting
Guest Traffic IsolationSupported
WMMVoice, Video, Best Effort, and Background
Concurrent Clients250+
Supported Data Rates:
802.11ac6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
