Description

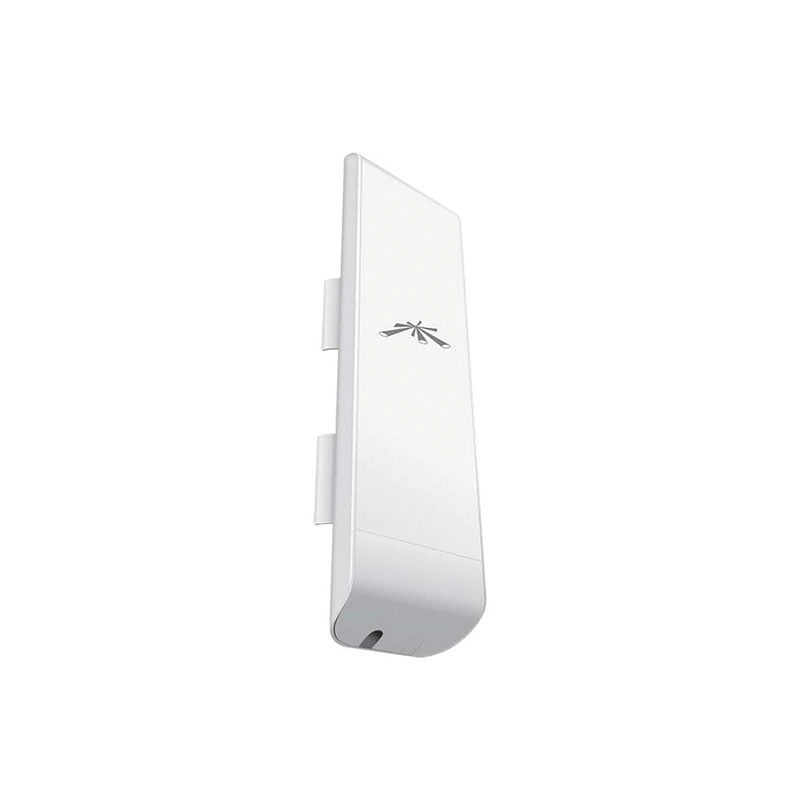

Ubiquiti NanoStation M5 5GHz 802.11n 150Mbps 2×2 MIMO radio.
The NanoStation M5 is a point-to-point (PtP) and point-to-multipoint (PtMP) wireless solution. The NanoStation M5 version of Ubiquiti’s highly successful NanoStation range has radio throughput of upto 150Mbps. The NanoStation M5 has an integrated dual linear polarised 16dBi internal antenna, one polarised vertically and one horizontally with cross-polarity isolation.
The Ubiquiti NanoStation M5 provides a secondary ethernet port with software enabled PoE output for seamless IP camera integration or additional Ubiquiti radio integration and is ideal as an Ethernet Bridge solution.
The Ubiquiti NanoStation features the Ubiquiti AirMax system which is designed as a carrier class system featuring:
Scalability: 300+ subs per sectored base station
Latency: Latency remains low for voice and video applications as network scales
Speed: 150Mbps PtMP performance
Range: 50km+ outdoor range
The NanoStation M5 is designed for pole mounting and is secured by heavy duty UV-resistant cable ties which are supplied with it. Also the NanoStation M5 can be used with the RF Elements NanoBracket for complete easy alignment and mounting.
This NanoStation M5 is supplied with PSU and POE injector and our fused UK plug adaptor.
Product Features:
- 802.11n 2×2 Mimo
- 150Mbps+ PtMP performance
- 50km+ outdoor range
Technical Specifications
| Ubiquiti NanoStation M5 | |
|---|---|
| Processor | Atheros MIPS 24KC, 400MHz |
| Memory | 32MB SDRAM, 8MB Flash |
| Networking | 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interf |
| TX power | 11b/g 6-24Mbps 27 dBm, 54Mbps 22 dBm |
| MCS0 27 dBm, MCS15 21 dBm | |
| Receive Sensitivity | 6-24Mbps: -94 dBm min., 54Mbps -75 dBm |
| MCS0 -96dBm, MCS5 -75 dBm | |
| Power supply | 24V, 0.8A POE adapter included, 8 watts max |
| Enclosure | Outdoor UV Stabilised Plastic |
| Size | 29.4 cm x 8 cm x 3cm |
| Weight | 0.4kg |
| RoHS | Yes |
| Approvals | FCC Part 15.247, IC RS210, CE |
| Antenna Frequency Range | 5470-5825 mHz |
| Antenna Gain | 14.6 - 16.1dBi |
| Polarization | Dual Linear |
| Cross-pol Isolation | 23dB minimum |
| Max VSWR | 1.6:1 |
| Elevation Beamwidth | 15 deg. |
| Horizontal Beamwidth | H-pol 43 deg., V Pol 41 deg |
| Operating Temperature | -30C to +80C |
