Fibre IP65 Outdoor Breakout Boxes

Please login or register to see price, or request a quote

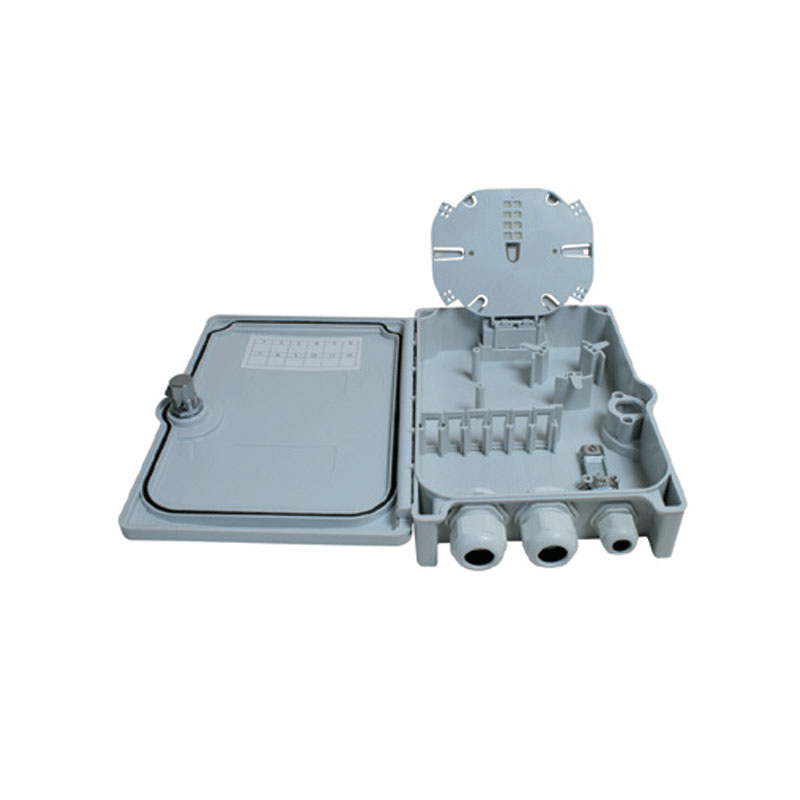

The Lockable IP65 distribution box offers the ability to terminate 12 fibres housed in a strong robust ABS enclosure for indoor and outdoor applications.

Features

  • Up to 12 fibres
  • SC & LC Connectors
  • Removable splice tray for easy installation
  • Multiple adapter options available
  • 6 adapter positions
  • IP 65
Clear
Compare
SKU: XXXXMMIP65 Categories: ,

Description

The Lockable IP65 distribution box offers the ability to terminate 12 fibres housed in a strong robust ABS enclosure for indoor and outdoor applications.

Loaded with LC Multimode or Singlemode adaptors offer a flexible solution to the end user, enabling them to incorporate a multi functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibres.

In addition to the interchangeable adaptors the enclosure also offers up to 12 exit points for patching cables and 1 standard cable entry point for loose tube, tight buffer, pre-terminated and steel tape armoured cable.

Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.

Features

  • Up to 12 fibres
  • SC & LC Connectors
  • Removable splice tray for easy installation
  • Multiple adapter options available
  • 6 adapter positions
  • IP 65
  • Accepts loose tube, distribution and pre terminated cables
  • Integrated bend radius protection
  • Sealing glands for up to 12 exiting cables + 1 incoming cable
  • Lockable door
  • Removable door for ease of installation
  • ROHS, REACH SvHC
  • Supplied with 12 heatshrink splice protectors
  • Supplied with transit tubing
  • Supplied with wall fixings and tie wraps

Dimensions

  • SC/LC 4 & 8 Way = 175W x 50D x 210H (mm)
  • SC/LC 12 Way = 186W x 61D x 258H (mm)
