Tight Buffered Fibre Cable

Please login or register to see price, or request a quote

Our Tight Buffered Fibre cables are constructed using 900um colour coded buffered fibres which can contain up to 24 fibres.

This fibre is protected with a water resistant/rodent proof strength members and is covered with a flame retardant LSZH outer sheath.

Specification:

  • Short and medium distance
  • As a riser, plenum, or general purpose cable
  • Suitable for direct termination
  • Interconnection of distribution boxes and customer equipment, between floors
Clear
Compare
SKU: XXXTB Categories: ,

Description

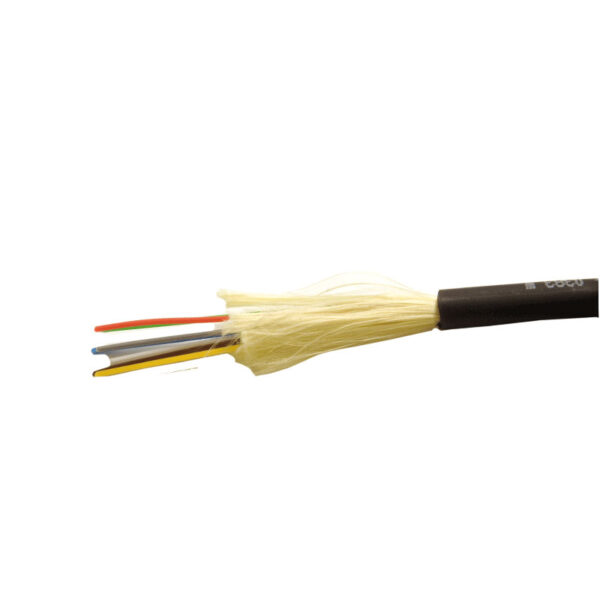

Our Fibre Optic Cable is constructed with a tight buffered construction, using 900um colour coded buffered fibres which can contain up to 24 fibres.

This fibre is protected with a water resistant/rodent proof strength members and is covered with a flame retardant LSZH outer sheath.

Fibre Performance

Fibre Type
Wavelength
Typical Bandwidth
  Typical Drive Distance
Ethernet
Fast Ethernet 11db budget
Gigabit Ethernet 3.6db budget
10G Ethernet 2.6db budget
40G Ethernet 1.9db budget
100G Ethernet 1.9/1.5db budget

OM1
850nm
200MHz
2000m
300m
275m
26m
N/S
N/S
1300/1310nm
500MHz
N/S
2000m
550m
N/S
N/S
N/S

OM2
850nm
500MHz
2000m
300m
550m
82m
N/S
N/S
1300/1310nm
800MHz
N/S
2000m
550m
82m
N/S
N/S

OM3
850nm
1500MHz
2000m
300m
550m
300m
100m
100m
1300/1310nm
500MHz
N/S
2000m
550m
300m
N/S
N/S

OM4
850nm
3500MHz
N/S
N/S
550m
550m
150m
150m
1300/1310nm
500MHz
N/S
N/S
550m
550m

OS2
1310nm
N/A
N/S
N/S
5000m
1000m
10000m
10000m
1550nm
N/A
N/S
N/S
N/S
40000m
40000m
40000m

Fibre Optic Cable Specification:

  • Short and medium distance
  • As a riser, plenum, or general purpose cable
  • Suitable for direct termination
  • Interconnection of distribution boxes and customer equipment, between floors
  • 4 – 24 fibre cables, the individual fibres are stranded and protected by aramid yarn and a LSZH jacket (other jackets available upon request)
  • A ripcord is located under the jacket to facilitate jacket removal
  • Cost effective multi fibre cable
  • Compact and flexible construction especially suited for indoor installations
  • Available in a UL listed riser rated construction
  • Standard colour black, other colours available upon request
  • Suitable for manufacturing pre terminated fibre cables
  • Cables tested according to TIA/EIA-455, IEC-60794-1-2 and EN-187000
  • Cables ordered with PVC or LSZH jackets meet IEC-60332-1 standard. Upon request, cables meeting the IEC-60332-3 can be supplied
  • Available in constructions meeting UL 1666 (Riser rating)
